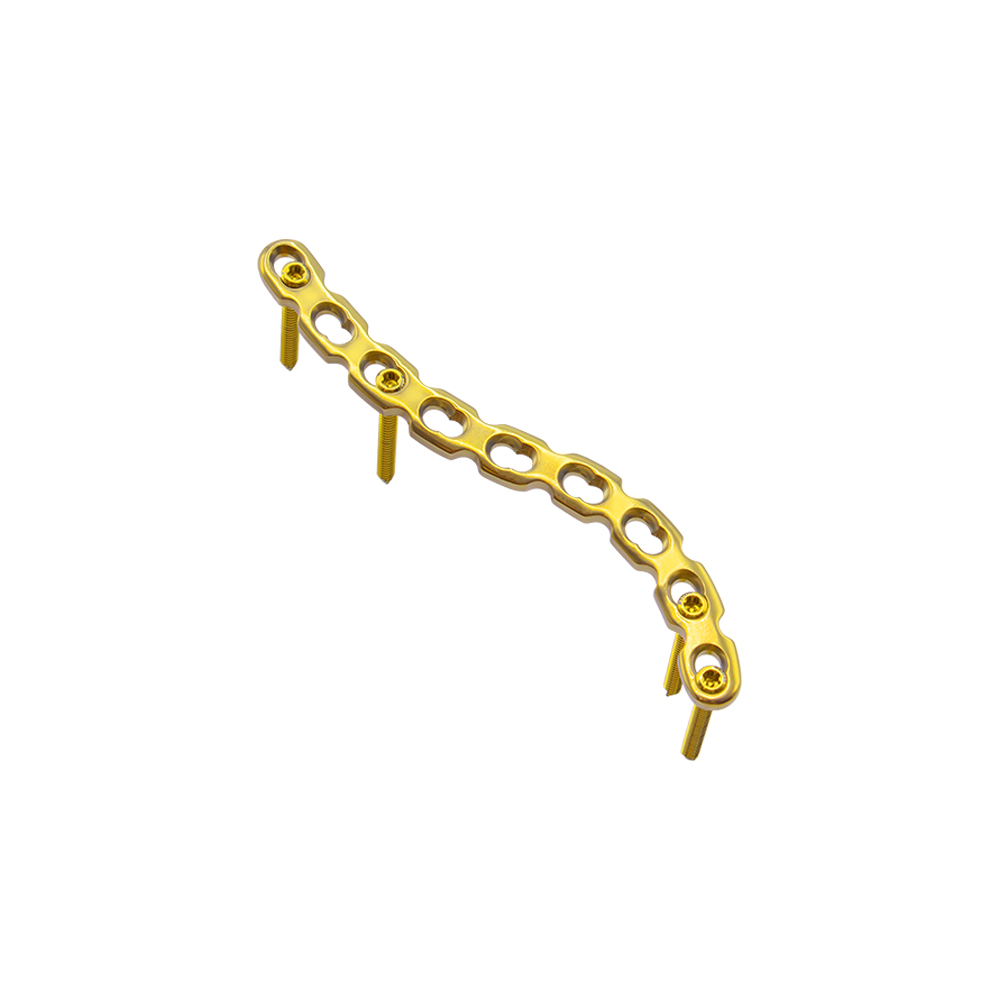

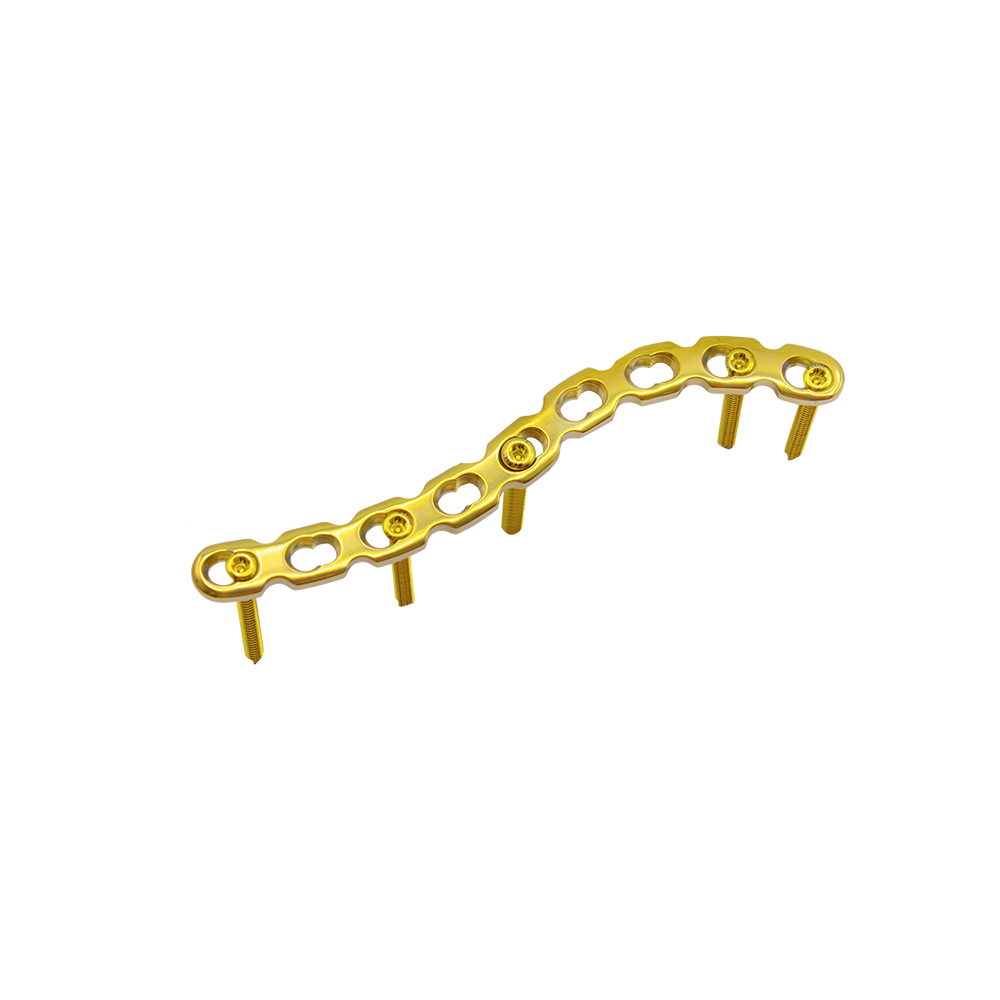

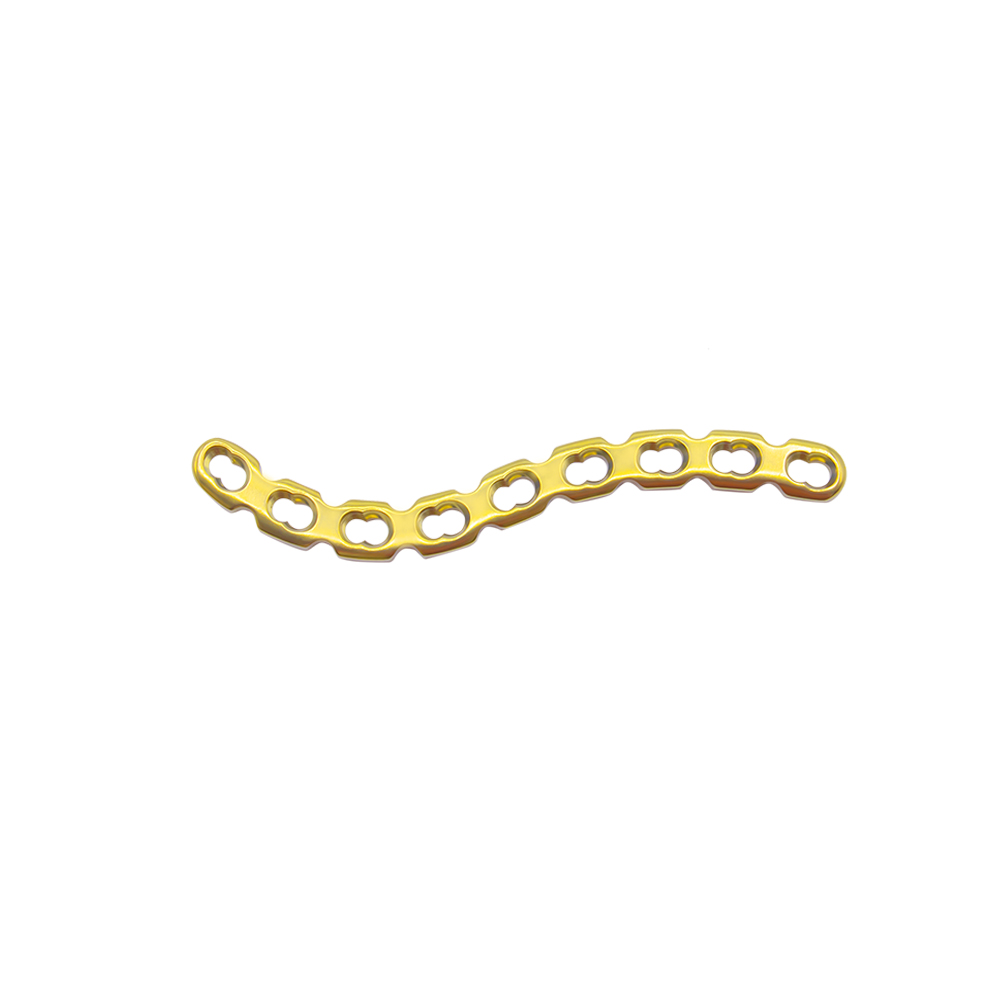

S-clavicle Locking Plate
S-clavicle Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-04
- MPN
- 5100-04
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
What is S-clavicle Locking Plate？
The Clavicle Hook Plate provides a single solution for fixation of both lateral clavicle fractures and acromioclavicular joint injuries. This plate and screw construct allows early rotational mobility of the shoulder.
The Clavicle Hook Plate is indicated for:
• Lateral clavicle fractures
• Dislocations of the acromioclavicular joint
Clavicle Hook Plates Features
• Dynamic compression screw holes accept 3.5 mm cortex and 4.0 mm cancellous bone screws
• Anterolateral screw hole provides additional options for screw fixation in the lateral clavicle
• Hook provides additional support to both lateral clavicle fractures and acromioclavicular joint dislocations
• Plates available with 5、6、7、8、9 and 10 holes
• Precontoured in left and right plates
• Available in commercially pure (CP) titanium or 316L stainless steel
• Offset hook design to avoid insertion of hook into acromioclavicular ligament
specifications
| Products | REF | Specification | Thickness | Width | Length |
S-clavicle Locking Plate (Use 3.5 Locking Screw/ 3.5 Cortical Screw/ 4.0 Cancellous Screw ) | 5100-0401 | 5 holes L | 3 | 10.5 | 54 |
| 5100-0402 | 6 holes L | 3 | 10.5 | 67 | |
| 5100-0403 | 7 holes L | 3 | 10.5 | 81 | |
| 5100-0404 | 8 holes L | 3 | 10.5 | 94 | |
| 5100-0405 | 9 holes L | 3 | 10.5 | 107 | |
| 5100-0406 | 10 holes L | 3 | 10.5 | 131 | |
| 5100-0407 | 5 holes R | 3 | 10.5 | 54 | |
| 5100-0408 | 6 holes R | 3 | 10.5 | 67 | |
| 5100-0409 | 7 holes R | 3 | 10.5 | 81 | |
| 5100-0410 | 8 holes R | 3 | 10.5 | 94 | |
| 5100-0411 | 9 holes R | 3 | 10.5 | 107 | |
| 5100-0412 | 10 holes R | 3 | 10.5 | 131 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-04
