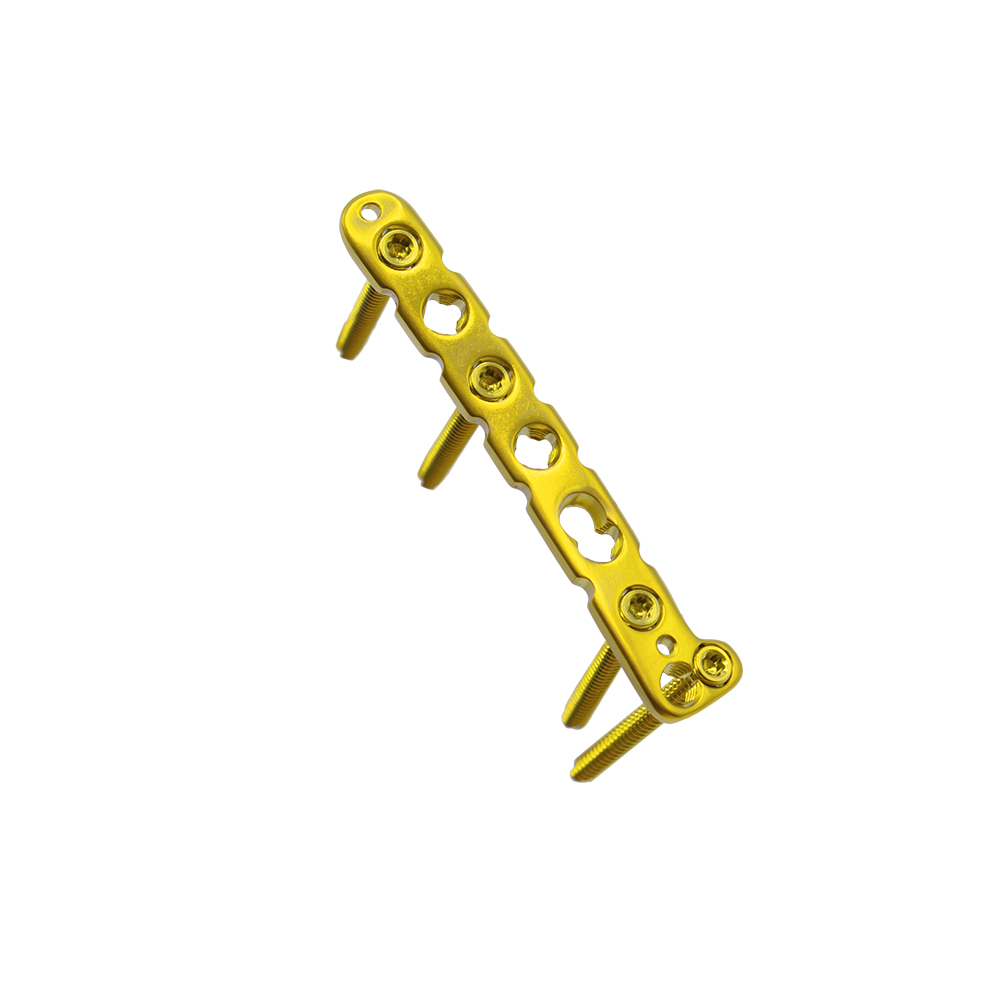

VA Distal Medial Radius Locking Plate
VA Distal Medial Radius Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-10
- MPN
- 5100-10
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
What is VA Distal Medial Radius Locking Plate？
The distal ulna is an essential component of the distal radioulnar joint, which helps provide rotation to the forearm. The distal ulnar surface is also an important platform for stability of the carpus and the hand. Unstable fractures of the distal ulna therefore threaten both movement and stability of the wrist.
The size and shape of the distal ulna, combined with the overlying mobile soft tissues, make application of standard implants difficult. 4 mm Distal Ulna Plate is specifically designed for use in fractures of the distal ulna.
Features & Benefits
Anatomically contoured to fit the distal ulna
Low profile design helps reduce soft tissue irritation
Accepts both 2.7 mm locking and cortex screws, providing angular stable fixation
Pointed hooks aid in reduction of the ulnar styloid
Angled locking screws allow secure fixation of the ulnar head
Multiple screw options allow a wide range of fracture patterns to be securely stabilized
Available sterile only, in stainless steel and titanium
specifications
| Products | REF | Specification | Thickness | Width | Length |
| VA Distal Medial Radius Locking Plate (Use 2.7 Locking Screw/2.7 Cortical screw) | 5100-1001 | 4 holes L | 2 | 7.2 | 41 |
| 5100-1002 | 5 holes L | 2 | 7.2 | 48 | |
| 5100-1003 | 6 holes L | 2 | 7.2 | 55 | |
| 5100-1004 | 4 holes R | 2 | 7.2 | 41 | |
| 5100-1005 | 5 holes R | 2 | 7.2 | 48 | |
| 5100-1006 | 6 holes R | 2 | 7.2 | 55 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-10
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
