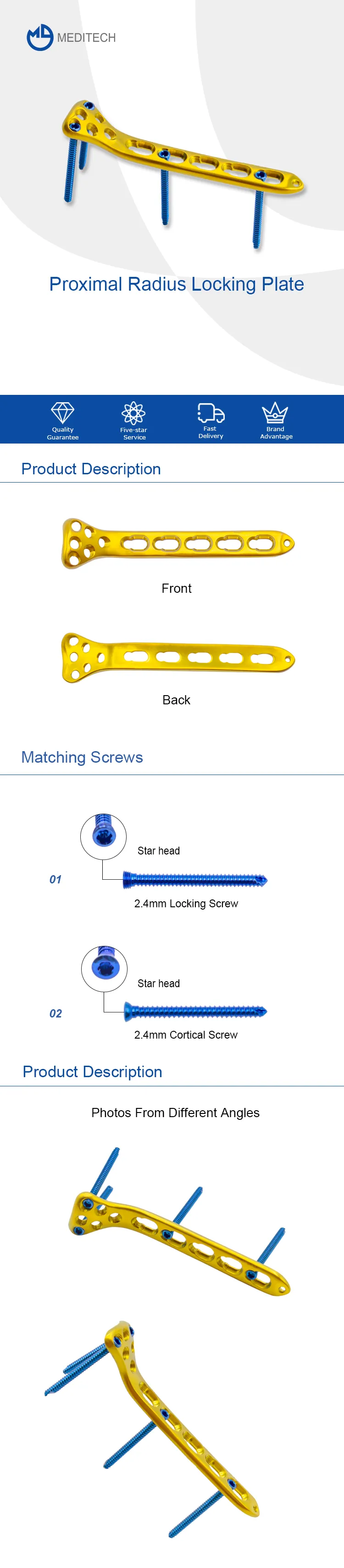

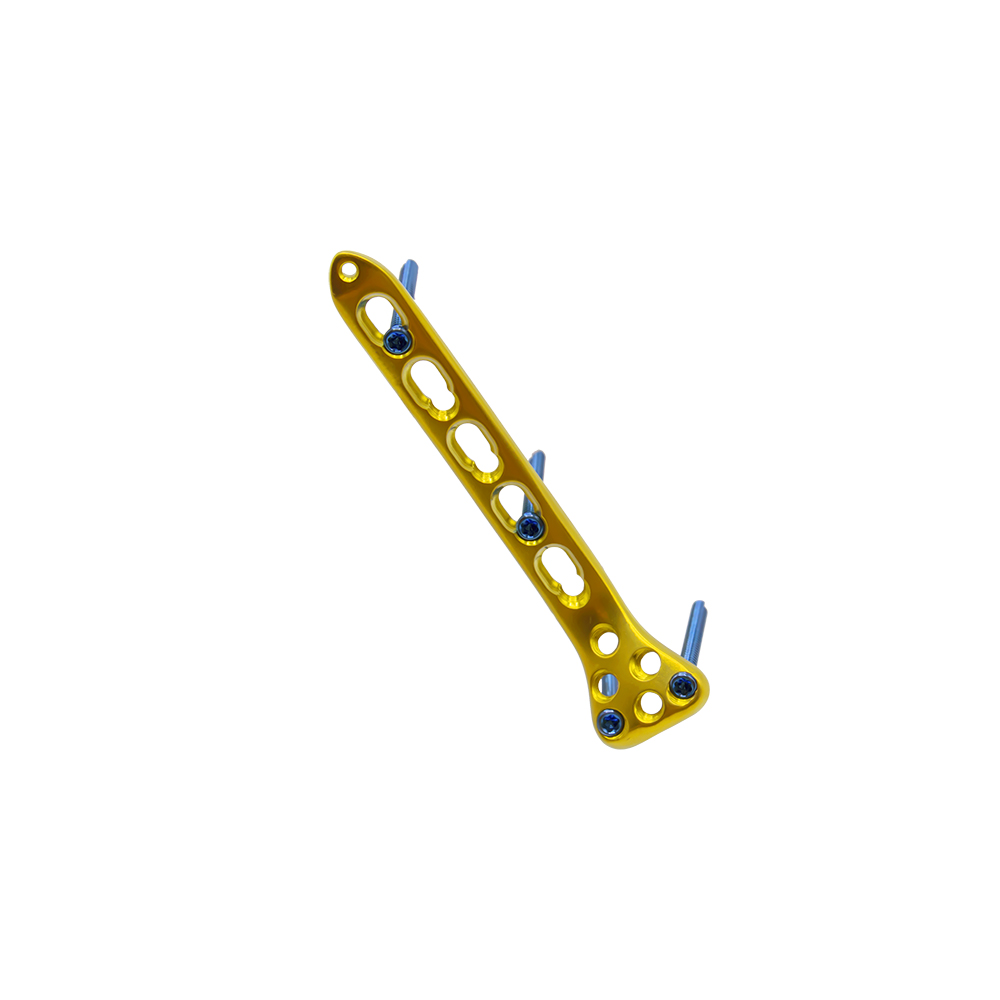

Proximal Radius Locking Plate
Proximal Radius Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-14
- MPN
- 5100-14
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
Plate features
– Nine LCP Proximal Radius Plates available to address various fracture patterns of the proximal radius
– Plates are precontoured for anatomical fit
– Combi holes allow fixation with locking screws in the threaded section for angular stability, and cortex screws in the Dynamic Compression Unit (DCU) section for distraction. A fixed-angle construct provides advantages in osteopenic bone or multifragment fractures, where traditional screw purchase is compromised.
– Carefully apply for osteoporotic bone
Additional features
– Limited-contact design shaft with 2, 3, and 4 combi-holes
– The holes in the head of the plate accept 2.4 mm locking screws
– The shaft holes accept 2.4 mm locking screws in the threaded portion or 2.7 mm cortex screws and 2.4 mm cortex screws in the distraction portion
– Plates for radial head rim available in right and left plates with a 5º tilt to match the anatomy of the radial head
– Plates for radial head neck fit both the left and right side of the proximal radius
specifications
| Products | REF | Specification | Thickness | Width | Length |
| Proximal Radius Locking Plate (Use 2.4 Locking Screw/2.4 Cortical Screw) | 5100-1401 | 3 holes L | 1.8 | 8.7 | 53 |
| 5100-1402 | 4 holes L | 1.8 | 8.7 | 63 | |
| 5100-1403 | 5 holes L | 1.8 | 8.7 | 72 | |
| 5100-1404 | 3 holes R | 1.8 | 8.7 | 53 | |
| 5100-1405 | 4 holes R | 1.8 | 8.7 | 63 | |
| 5100-1406 | 5 holes R | 1.8 | 8.7 | 72 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-14
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
