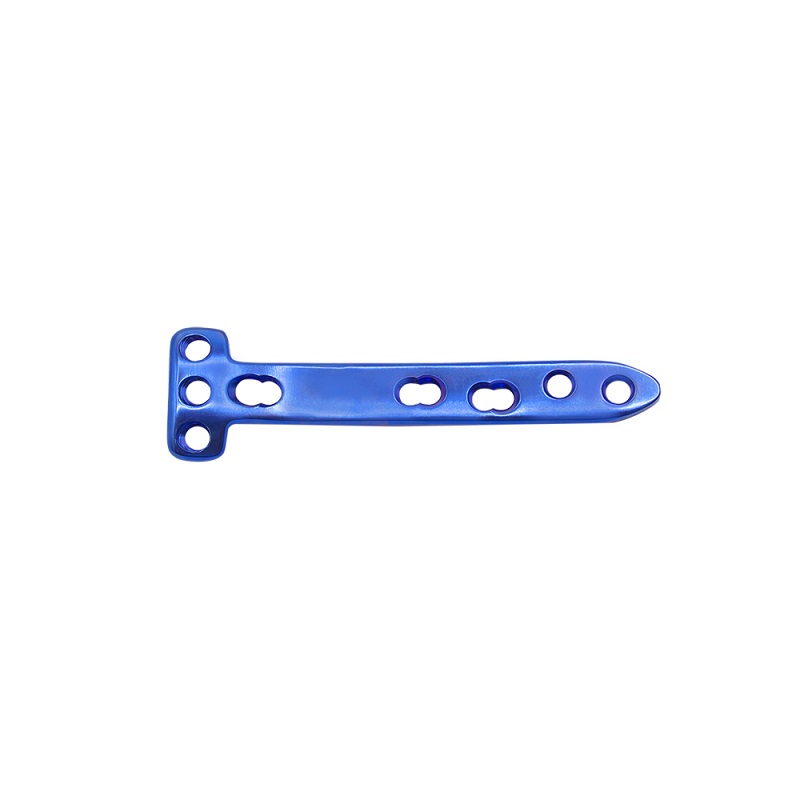

Proximal Medial Tibial Osteotomy Locking Plate
Proximal Medial Tibial Osteotomy Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-23
- MPN
- 5100-23
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
What is Proximal Medial Tibial Osteotomy Locking Plate？

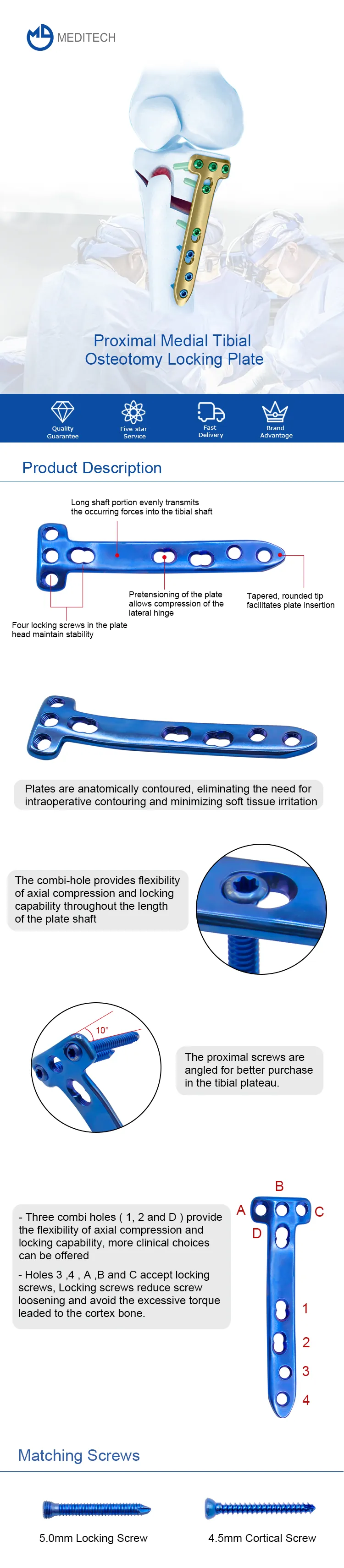

The Proximal Medial Tibial Osteotomy Locking Plate, part of the OrthoLimited Osteotomy System, is pre-contoured to fit the medial proximal tibia, reducing the need for intraoperative bending and soft tissue irritation. Two plate options, standard and small, are available to accommodate varying patient anatomy. The solid midsection provides the strength necessary to sustain the osteotomy.
The tapered plate end facilitates minimally invasive insertion. Three Combi holes provide the flexibility of axial compression and locking capability. The most proximal holes (plate head) and most distal holes (plate shaft) accept locking screws, aiding in angular stability.
The Proximal Medial Tibial Osteotomy Locking Plates are available in commercially pure titanium.
The Proximal Medial Tibial Osteotomy Locking Plate System is a comprehensive plating system for stable fixation of osteotomies around the knee.
specifications
| Products | REF | Specification | Thickness | Width | Length |
| Proximal Medial Tibial Osteotomy Locking Plate (Use 5.0 Locking Screw/4.5 Cortical Screw) | 5100-2301 | 5 holes | 2.8 | 16 | 115 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-23
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
