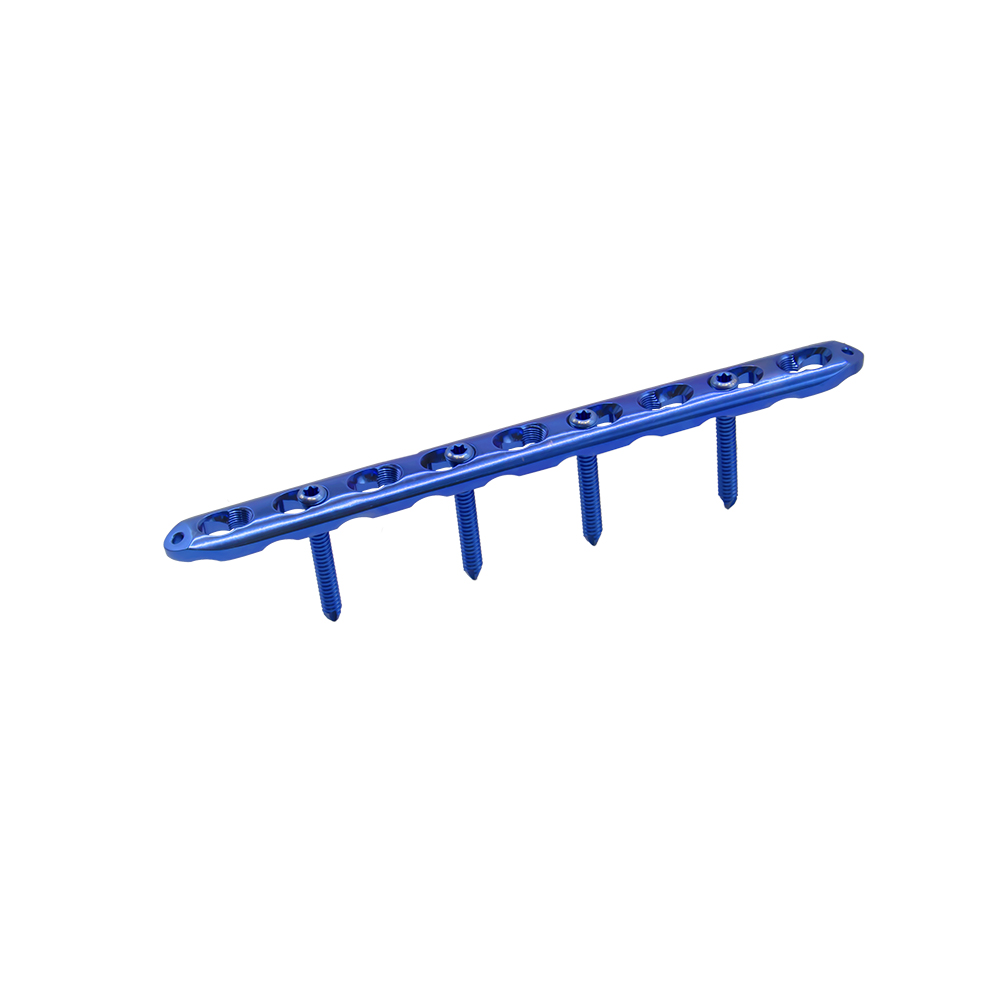

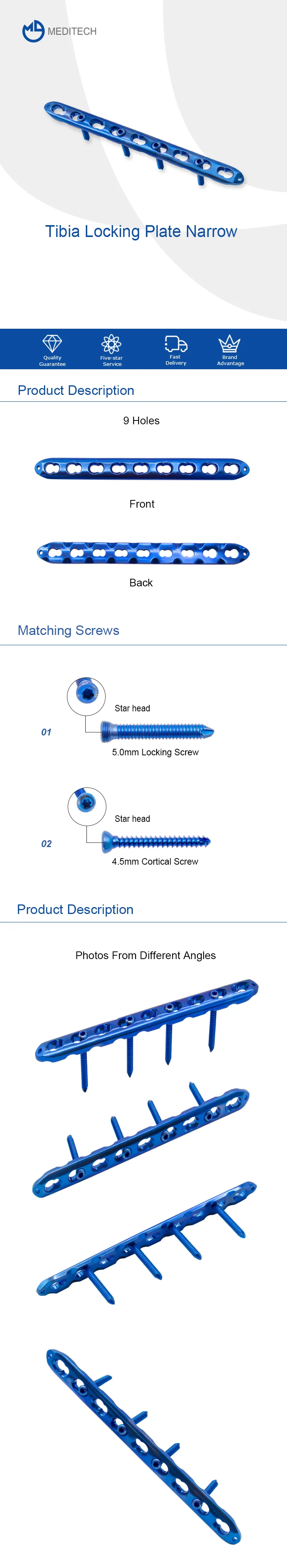

Tibia Locking Plate Narrow

Tibia Locking Plate Narrow — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.

SKU: 5100-22
MPN: 5100-22
Brand: OrthoLimited
Manufactured by: OrthoLimited Inc.
Warehouse: EU
Availability: In stock

✓ CE marked
✓ ISO 13485
✓ Warranty included
✓ Worldwide shipping

Tags

Share

Regulatory: For professional surgical use only. Availability and certification vary by country; confirm local regulatory status before purchase or use.

Compare with similar items

Clinical overview

Product overview

What is Tibia Locking Plate Narrow？

This plate is made to be used for treatment of fracures that happen at the shaft place of long bones. It is particularly used for tibia bone.

specifications

Products	REF	Specification	Thickness	Width	Length
Tibia Locking Plate Narrow (Use 5.0 Locking Screw/4.5 Cortical Screw)	5100-2201	7 holes	5.0	15	139
5100-2202	8 holes	5.0	15	157
5100-2203	9 holes	5.0	15	175
5100-2204	10 holes	5.0	15	193
5100-2205	12 holes	5.0	15	229
5100-2206	14 holes	5.0	15	265

Technical specifications

Engineering at a glance

Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.

Model: 5100-22
