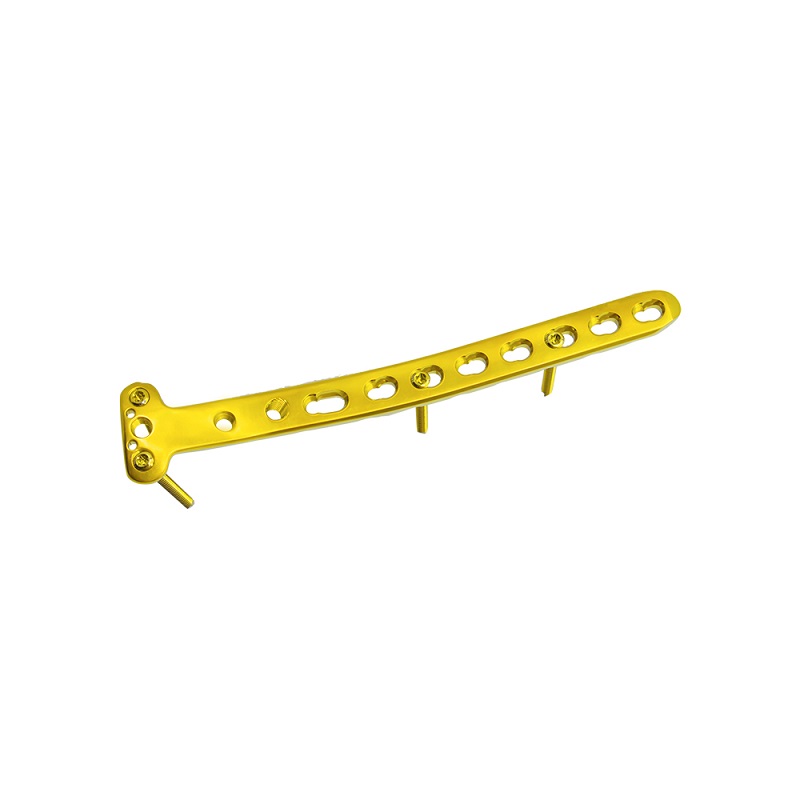

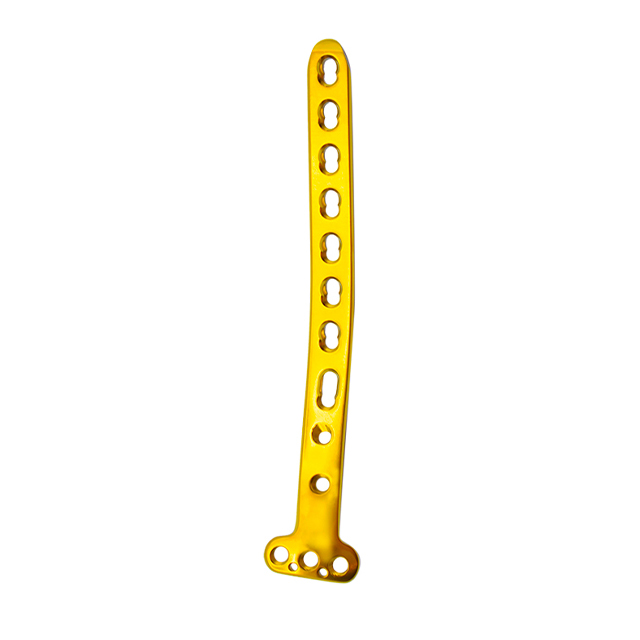

Proximal Medial Tibial Locking Plate

What is Proximal Medial Tibial Locking Plate ？

The 3.5 mm LCP Medial Proximal Tibia Plate is part of the OrthoLimited Small Fragment LCP System that merges locking screw technology with conventional plating techniques.

The 3.5 mm LCP Medial Proximal Tibia Plate is available in stainless steel and has a limited-contact shaft profile. The head and neck portions of the plate accept 3.5 mm Locking Screws and 3.5 mm Conical Screws. The screw hole pattern allows a raft of subchondral locking screws to buttress and maintain reduction of the articular surface. This provides fixed-angle support to the tibial plateau.

The locking compression plate (LCP) has Combi holes in the plate shaft that combine a dynamic compression unit (DCU) hole with a locking screw hole. The Combi hole provides the flexibility of axial compression and locking capability throughout the length of the plate shaft.

Available in left and right plates, in implant quality 316L stainless steel.

Plate head

• Anatomically contoured to approximate the anteromedial proximal tibia.

• Three convergent threaded screw holes accept 3.5 mm Locking Screws or 3.5 mm Conical Screws.

• Two 2.0 mm holes for preliminary fixation with K-wires, or meniscal repair with sutures.

Plate shaft

• The two angled locking holes distal to the plate head accept 3.5 mm Locking Screws or 3.5 mm Conical Screws, to secure the plate position.The hole angles allow the locking screws to converge with two of the three screws in the plate head.

• Combi holes, distal to the angled locking holes, combine a DCU hole with a threaded locking hole. The Combi holes accept 3.5 mm Locking Screws or 3.5 mm Conical Screws in the threaded portion of the hole and 3.5 mm Cortex Screws or 3.5 mm Shaft Screws in the DCU portion of the hole.

• Available with 4, 6, 8, 10, or 12 Combi holes in the plate shaft.

• Limited-contact profile.

specifications
