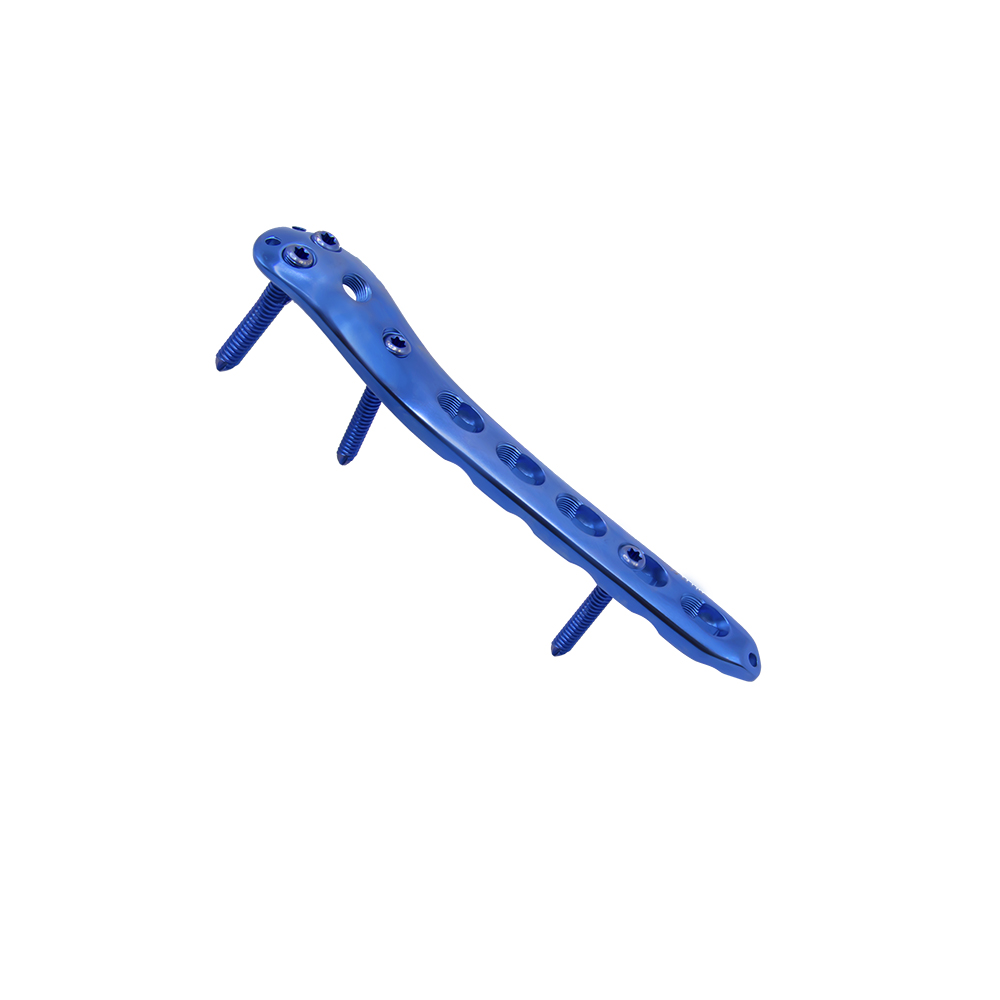

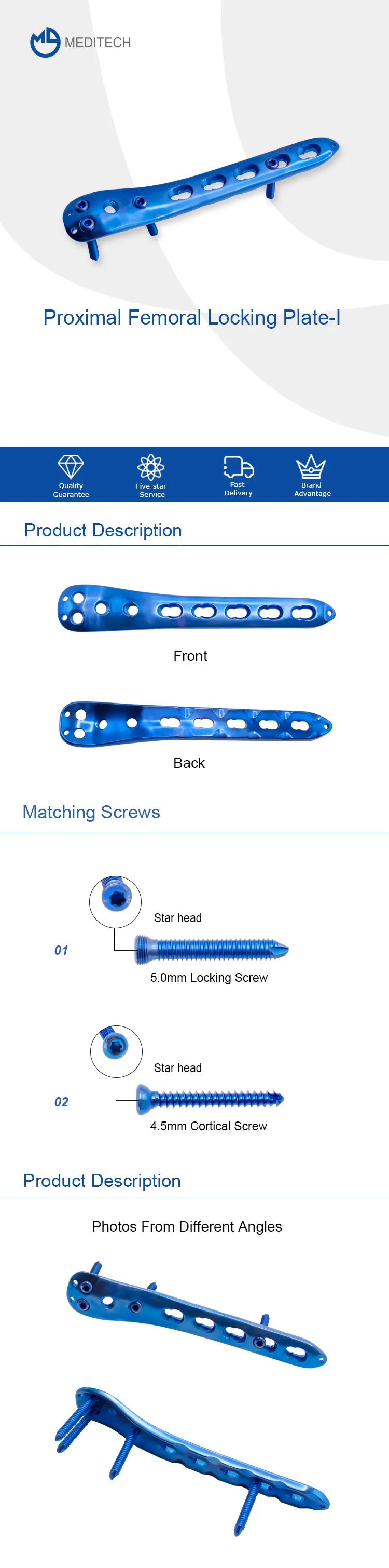

Proximal Femoral Locking Plate-I
Proximal Femoral Locking Plate-I — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-36
- MPN
- 5100-36
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
What is Proximal Femoral Locking Plate？
The Proximal Femoral Locking Plate is part of the LCP Periarticular Plating System, which merges locking screw technology with conventional plating techniques. 5 mm LCP Proximal Tibia and LCP Medial Proximal Tibia Plates.
specifications
| Products | REF | Specification | Thickness | Width | Length |
Proximal Femoral Locking Plate-I (Use 5.0 Locking Screw/4.5 Cortical Screw) | 5100-3601 | 5 holes L | 6.0 | 18 | 153 |
| 5100-3602 | 7 holes L | 6.0 | 18 | 189 | |
| 5100-3603 | 9 holes L | 6.0 | 18 | 225 | |
| 5100-3604 | 11 holes L | 6.0 | 18 | 261 | |
| 5100-3605 | 13 holes L | 6.0 | 18 | 297 | |
| 5100-3606 | 5 holes R | 6.0 | 18 | 153 | |
| 5100-3607 | 7 holes R | 6.0 | 18 | 189 | |
| 5100-3608 | 9 holes R | 6.0 | 18 | 225 | |
| 5100-3609 | 11 holes R | 6.0 | 18 | 261 | |
| 5100-3610 | 13 holes R | 6.0 | 18 | 297 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-36
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
