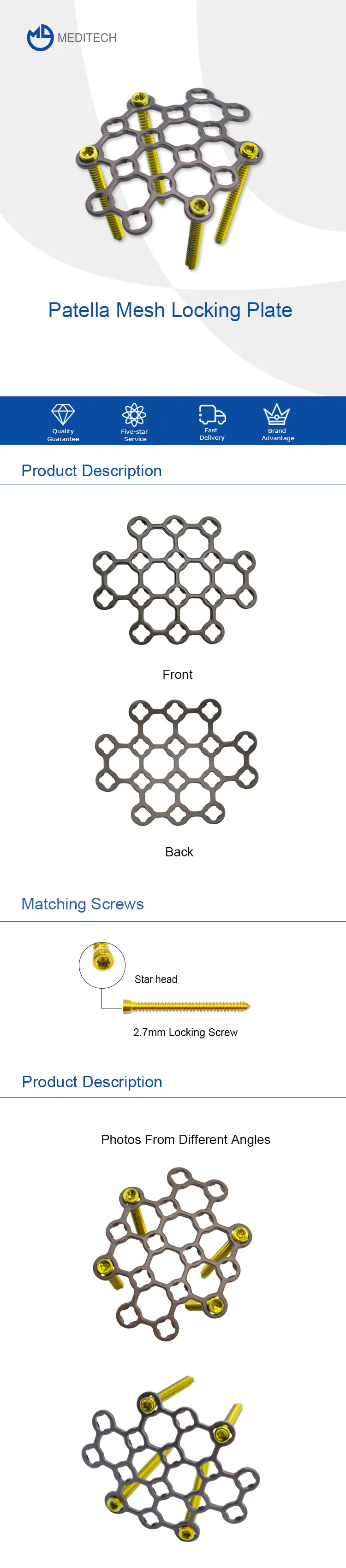

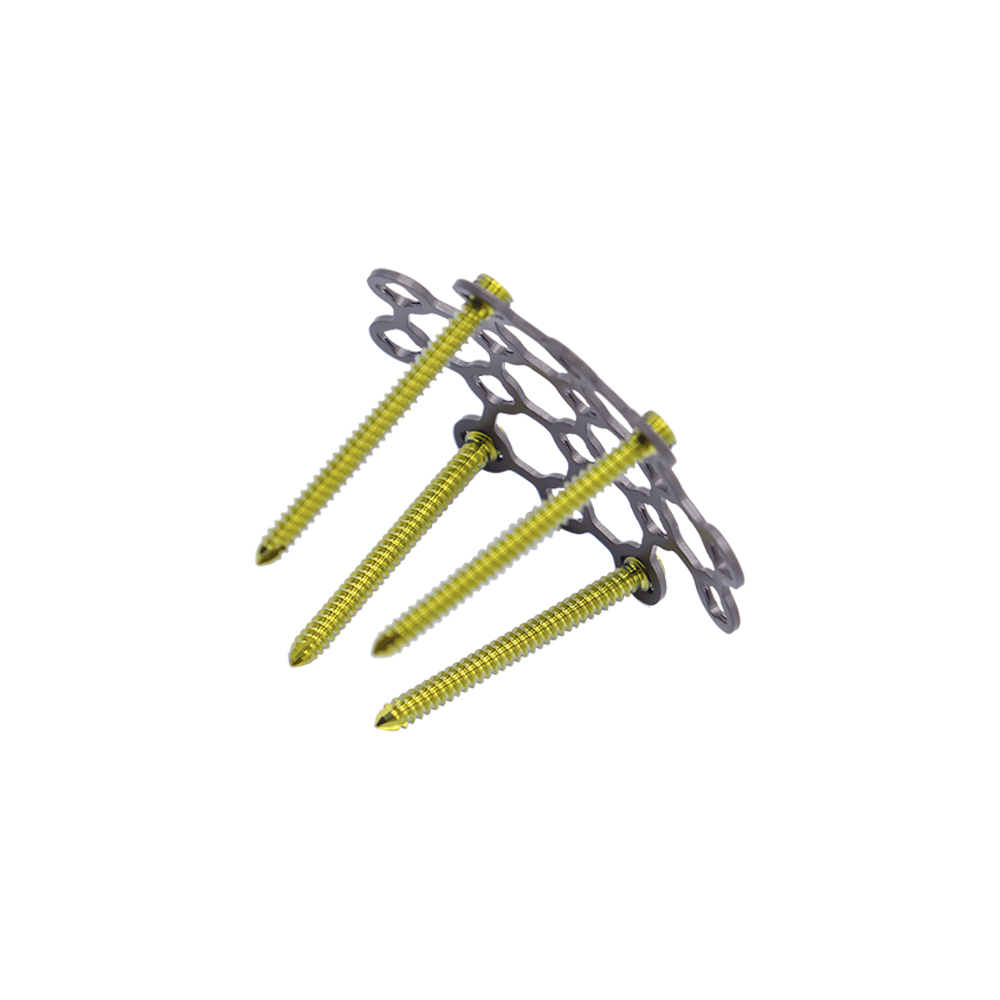

Patella Mesh Locking Plate
Patella Mesh Locking Plate β a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-34
- MPN
- 5100-34
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- β CE marked
- β ISO 13485
- β Warranty included
- β Worldwide shipping
Clinical overview
Product overview
Features & Benefits
Range of plates designed to address simple, wedge and complex fractures for large and small patellae.
Plate design facilitates bending and contouring to meet patient specific needs. Windows can be used to attach soft tissue with suture.
Plates can be cut to meet the needs for the specific fracture pattern and patient anatomy.
Variable angle (VA) locking holes enable up to 15Λ of screw angulation to target small bone fragments, avoid fracture lines and other hardware.
Screw holes accept 2.7 mm VA locking, and cortex screws.
Legs of the plate allow bicortical polar (apex to base) screws to be placed for interfragmentary fixation.
Available in Titanium and Stainless Steel.
specifications
| Products | REF | Specification | Thickness | Width | Length |
| Patella Mesh Locking Plate (Use 2.7 Locking Screw) | 5100-3401 | 16 holes Small | 1 | 30 | 38 |
| 5100-3402 | 16 holes Medium | 1 | 33 | 42 | |
| 5100-3403 | 16 holes Large | 1 | 36 | 46 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request β contact our sales team for the full regulatory file.
- Model
- 5100-34
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork β usually within one business day.
