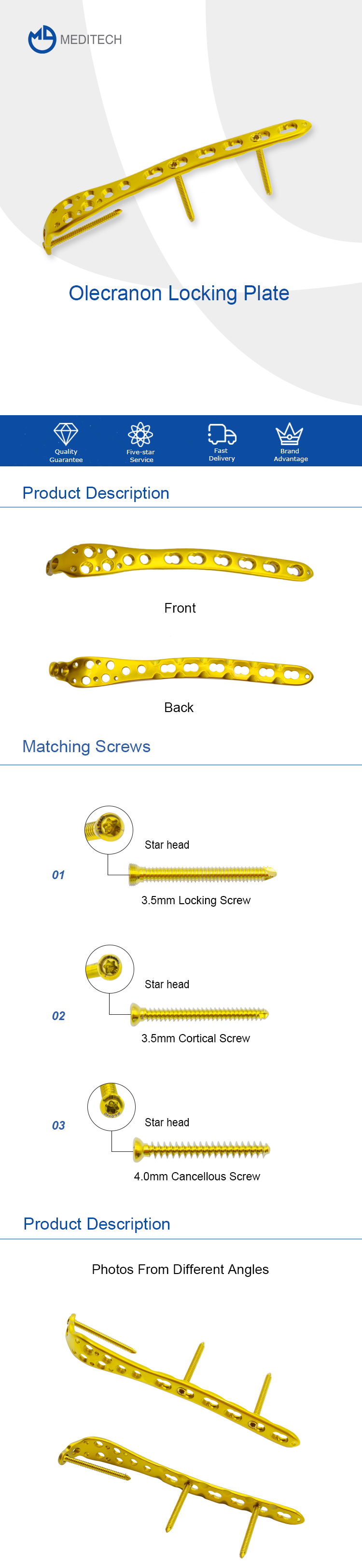

Olecranon Locking Plate
Olecranon Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-07
- MPN
- 5100-07
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
What is Olecranon Locking Plate?

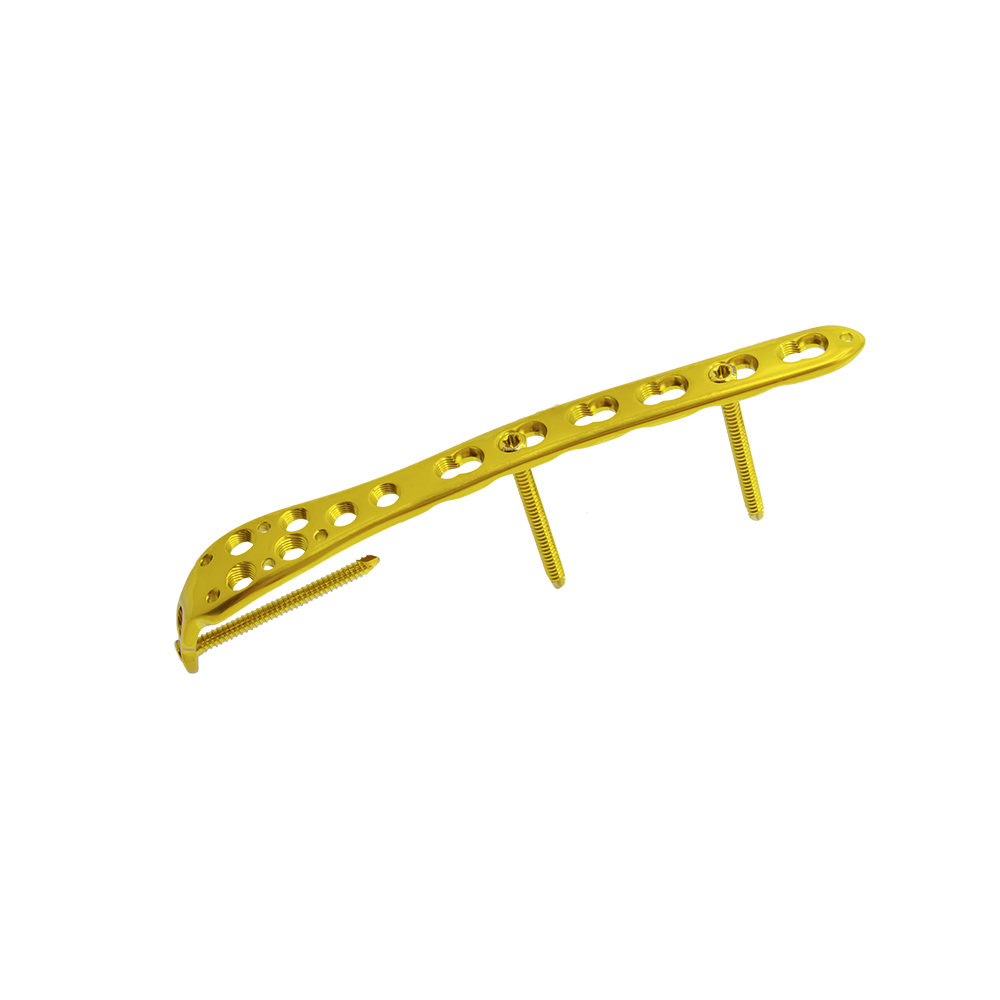

The Olecranon Locking Plate System combines the advantages of locked plating with the versatility and benefits of traditional plates and screws. Utilizing both locking and non-locking screws, the Olecranon Locking Plate allows for the creation of a fixed-angle construct capable of resisting angular collapse. Its enhanced stability also allows it to function as an effective fracture reduction aid.
A simple, intuitive instrument set featuring standardized drill bits and screwdrivers along with color-coded drill guides, helps make theOlecranon Locking Plate efficient and easy to use. 7mm Instrument and Implant Sets. Their precise screw trajectories, anatomic contour and locking/non-locking capabilities provide a stable construct for predictable reconstruction of complex fractures of the olecranon.
Plate Features
• Coronal bend of longer plates accommodates ulnar anatomy
• Recon plate segments facilitate additional contouring if necessary
• Two articular tines provide additional stability in the triceps tendon
• Left/right-specific
• 316L stainless steel for strength
• Locking/non-locking option in all screw holes
• Proximal articular screw holes accept 2.7mm Locking and 2.7mm Cortex Screws
• Shaft screw holes accept 3.5mm Locking and 3.5mm Cortex Screws
specifications
| Products | REF | Specification | Thickness | Width | Length |
Olecranon Locking Plate (Use 3.5 Locking Screw/3.5 Cortical Screw/4.0 Cancellous Screw ) | 5100-0701 | 3 holes L | 2.5 | 11 | 107 |
| 5100-0702 | 4 holes L | 2.5 | 11 | 120 | |
| 5100-0703 | 6 holes L | 2.5 | 11 | 146 | |
| 5100-0704 | 8 holes L | 2.5 | 11 | 172 | |
| 5100-0705 | 10 holes L | 2.5 | 11 | 198 | |
| 5100-0706 | 3 holes R | 2.5 | 11 | 107 | |
| 5100-0707 | 4 holes R | 2.5 | 11 | 120 | |
| 5100-0708 | 6 holes R | 2.5 | 11 | 146 | |
| 5100-0709 | 8 holes R | 2.5 | 11 | 172 | |
| 5100-0710 | 10 holes R | 2.5 | 11 | 198 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-07
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
