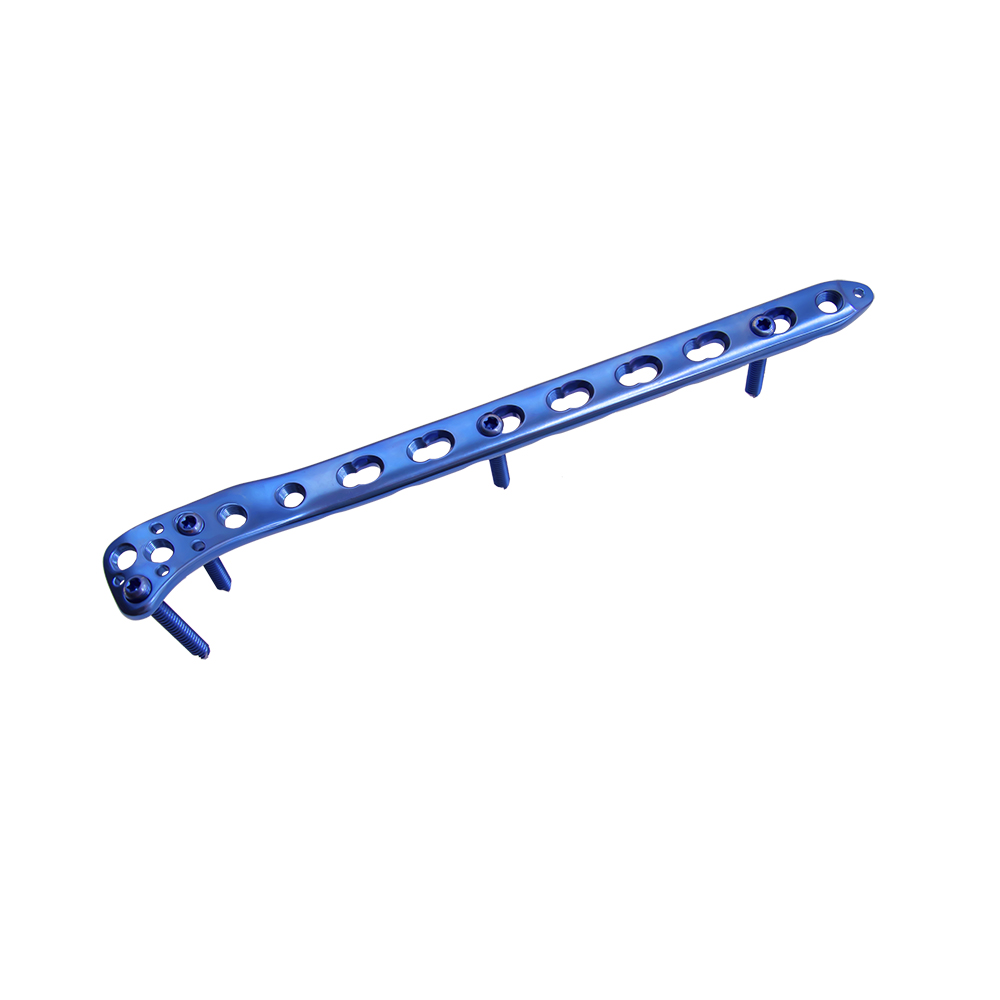

Lateral Tibial Head Buttress Locking Plate
Lateral Tibial Head Buttress Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-24
- MPN
- 5100-24
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
What is Lateral Tibial Head Buttress Locking Plate？
The OrthoLimited 3.5 mm LCP® Lateral Tibial Head Buttress Locking Plate is part of the LCP Periarticular Plating System, which merges locking screw technology with conventional plating techniques.
Lateral Tibial Head Buttress Locking Plate, and complex fractures of the proximal tibia when using the 3.5 mm LCP Proximal Tibia Plates and 3.5 mm LCP Medial Proximal Tibia Plates.
The locking compression plate (LCP) has Combi holes in the plate shaft that combine a dynamic compression unit (DCU) hole with a locking screw hole. The Combi hole provides the flexibility of axial compression and locking capability throughout the length of the plate shaft.
specifications
| Products | REF | Specification | Thickness | Width | Length |
Lateral Tibial Head Buttress Locking Plate (Use 5.0 Locking Screw/4.5 Cortical Screw) | 5100-2401 | 5 holes L | 4.6 | 15 | 144 |
| 5100-2402 | 7 holes L | 4.6 | 15 | 182 | |
| 5100-2403 | 9 holes L | 4.6 | 15 | 220 | |
| 5100-2404 | 11 holes L | 4.6 | 15 | 258 | |
| 5100-2405 | 13 holes L | 4.6 | 15 | 296 | |
| 5100-2406 | 5 holes R | 4.6 | 15 | 144 | |
| 5100-2407 | 7 holes R | 4.6 | 15 | 182 | |
| 5100-2408 | 9 holes R | 4.6 | 15 | 220 | |
| 5100-2409 | 11 holes R | 4.6 | 15 | 258 | |
| 5100-2410 | 13 holes R | 4.6 | 15 | 296 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-24
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
