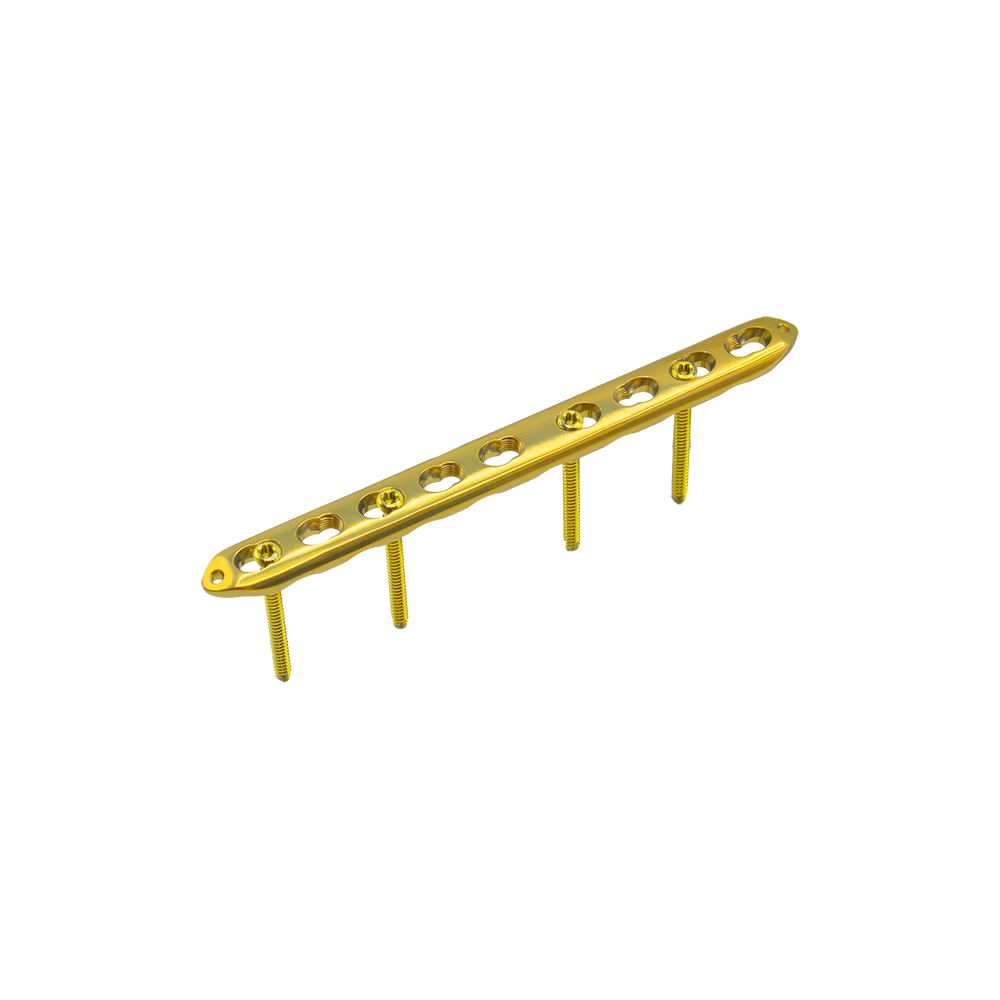

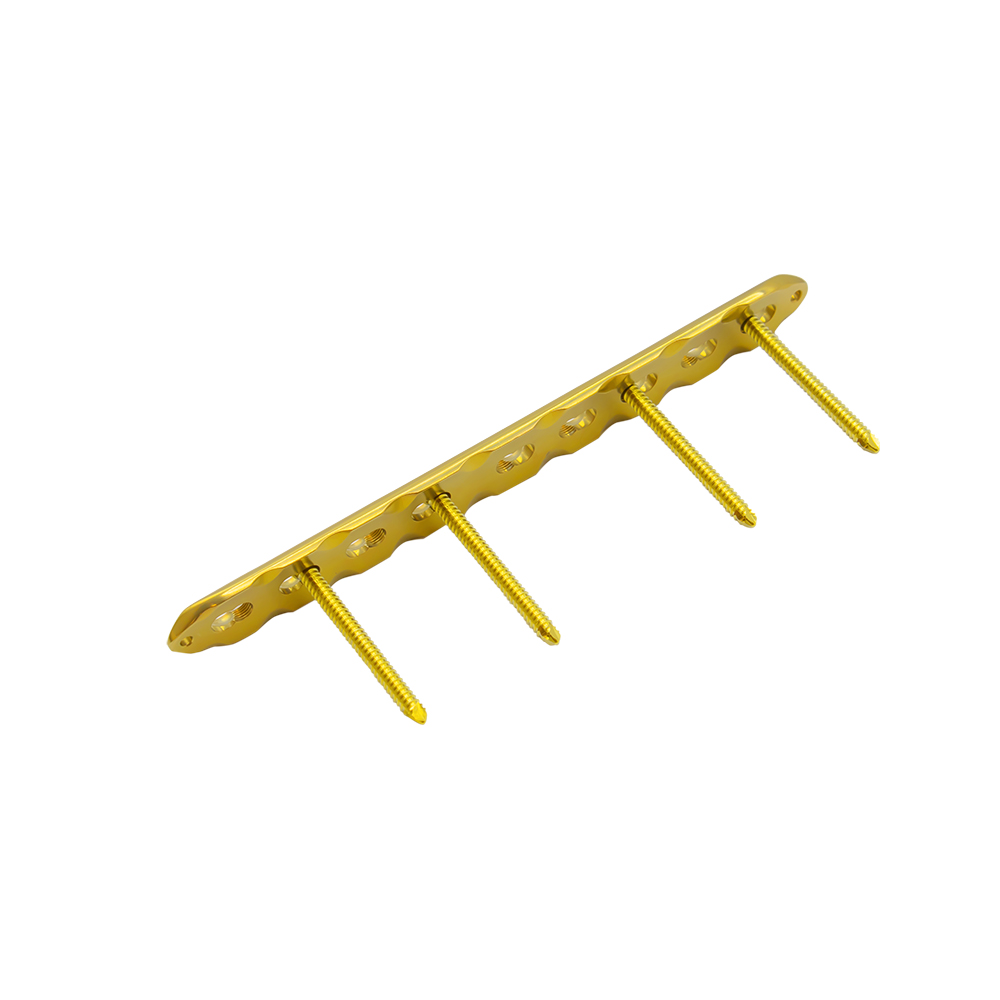

Humeral Shaft Straight Locking Plate
Humeral Shaft Straight Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-01
- MPN
- 5100-01
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
What is Humeral Shaft Straight Locking Plate？
Humeral Shaft Straight Locking Plates are indicated for fractures and deformities in the shaft (middle, diaphyseal) part of the humerus bone.
Humerus fractures are % 3- 7 of all fracture types.
Features
Low plate-and-screw profile and rounded plate edges minimize potential for tendon and soft tissue irritation.
Kirschner wire holes accept Kirschner wires (up to 1.5 mm) to temporarily fix the plate to the bone , to temporarily reduce articular fragments, and to confirm the location of the plate, relative to the bone.
Locking the screw into the plate does not generate additional compression. Therefore, the periosteum will be protected and the blood supply to the bone preserved.
The combi-hole pro- vides flexibility of axial compression and locking capability throughout the length of the plate shaft.
specifications

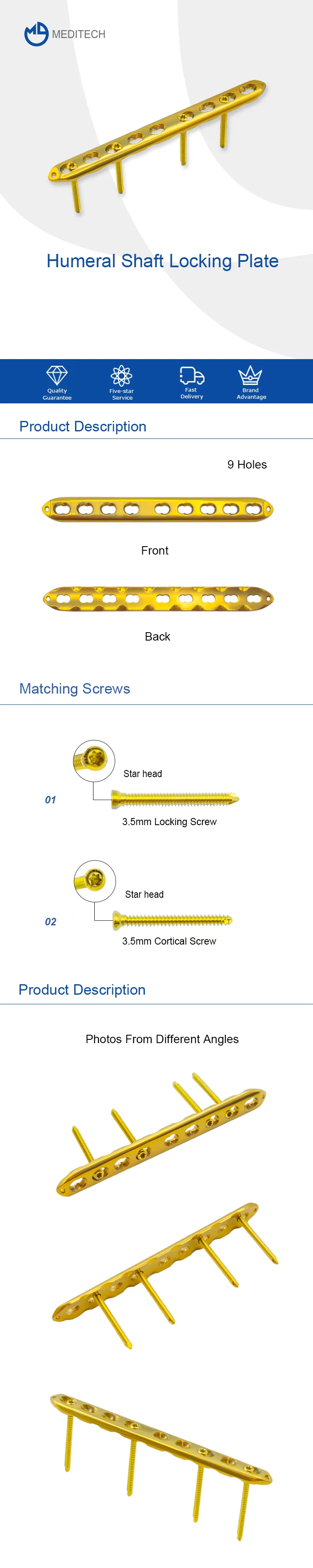

| Products | REF | Specification | Thickness | Width | Length |
| Humeral Shaft Locking Plate (Use 3.5 Locking Screw/3.5 Cortical Screw ) | 5100-0101 | 6 holes | 3.6 | 13 | 92 |
| 5100-0102 | 7 holes | 3.6 | 13 | 105 | |
| 5100-0103 | 8 holes | 3.6 | 13 | 118 | |
| 5100-0104 | 9 holes | 3.6 | 13 | 131 | |
| 5100-0105 | 10 holes | 3.6 | 13 | 144 | |
| 5100-0106 | 12 holes | 3.6 | 13 | 170 | |
| 5100-0107 | 14 holes | 3.6 | 13 | 196 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-01
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
