Femoral Reconstruction Nail

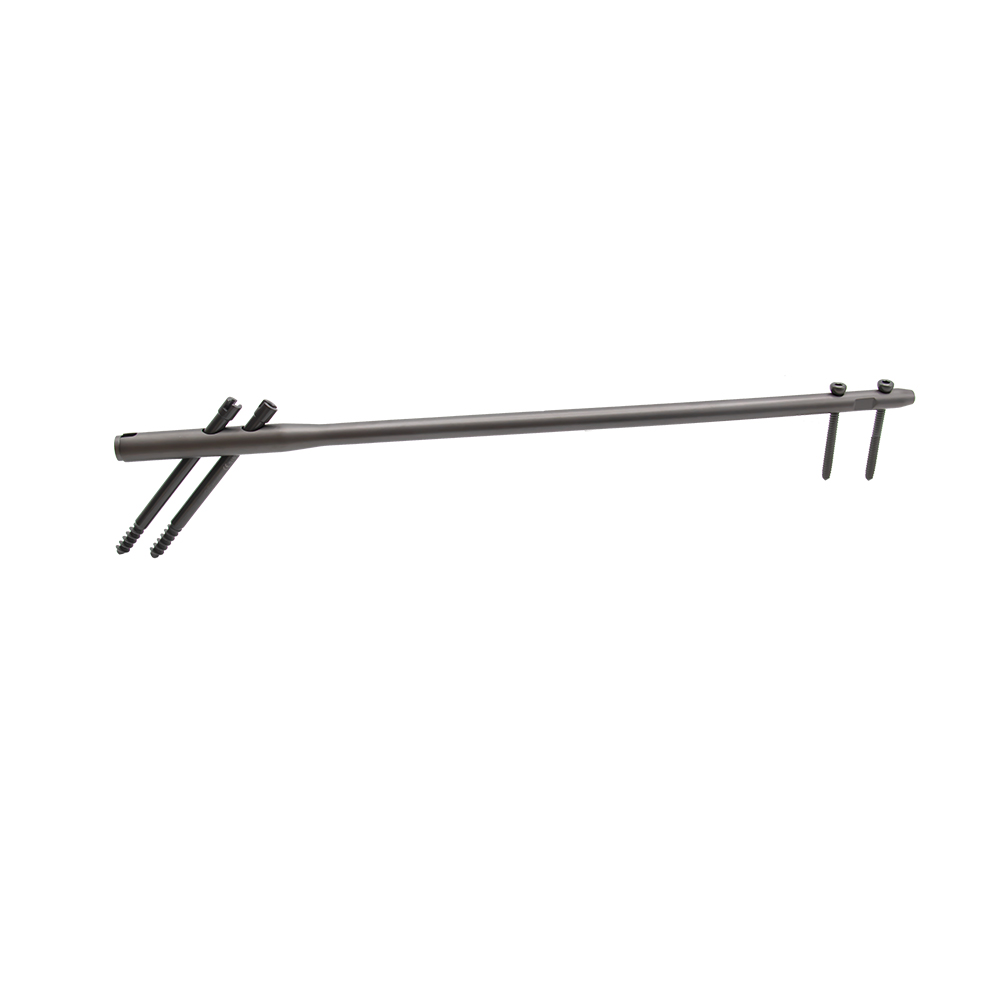

OrthoLimited Femoral Reconstruction Nail

Femoral Recon Nail is designed to help treat various fractures of the femur. Different nails are available to be placed through the tip of the Greater Trochanter. Screws are placed through the nail to secure the implant in place and maintain length and alignment while healing occurs. The nails have multiple screw holes in the proximal body to allow surgeons to address different fracture types. Proximal and distal slots allow for compression or dynamization across a fracture.

Femoral Recon Nail Introduction

Femoral Recon Nail System offers an extensive range of surgical entry points and locking options to meet more surgeons’ needs for femoral shaft fractures.

Designed for anatomical fit

Nail designed to better fit patient anatomy and help avoid impinging anterior cortex compared to nails with a larger radius of curvature.

Reduced procedural complexity

Femoral Recon Nail instrumentation includes features designed to reduce surgical complexity facilitating intraoperative visualization, implant positioning and alignment as well as ease of use for OR staff.

Proximal locking options

Choice of standard and reconstruction locking modes allows for the treatment of a variety of femoral fracture patterns and locations.

Distal locking options

Equipped with four distal locking options, including an oblique distal hole to better target bone in the condyles and an A/P hole that provides an optional purchase point.

Entry point selection

Greater Trochanter and Piriformis Fossa entry point nail designs to accommodate varying patient anatomies and surgeon preference.

Advanced nail design

Femoral Recon Nails design offers great flexibility

Different Nails for left and right femur

Anatomic bend for ease in insertion and extraction

Cannulation of all nails for guided insertion in reamed and unreamed technique

Large portfolio with nail diameters ranging from Dia 9 to 11 mm and lengths ranging from 320 to 420 mm

Versatile locking configuration for static, dynamic and standard locking

Femoral Recon Nails available in Titanium and SS 316L

Unique distal locking options

The unique distal combination hole enables the optimal locking for every anatomical situation and fracture type. The surgeon can use standard locking (with two locking screws). The end cap allows for angular stable locking of the most distal locking implant in both configurations.

End caps

Self-retaining Screw driver for effortless and secure end cap pick-up and insertion

Possibility to block most proximal locking screw for absolute angular stability

End cap prevents ingrowth of tissue and facilitates nail removal

Locking screws

The 6.4 mm Cannulated Lag Screws have a unique thread design that provide an excellent grip. Improved front cutting flutes allow for lesser insertion torque and thinner flanks for less bone removal.

Secure placement of the Lag Screws within small neck diameters can be achieved due to separating the two 6.4 mm lag screws and distance between the 6.4 mm Lag screws.

The distal locking configuration features a round and an oblong hole to allow for static and / or dynamic distal locking.

5 mm cortical screws, common to the Femoral Recon Nails, are designed to simplify the surgical procedure and promote a minimally invasive approach.

Self-holding Screw driver for effortless and secure locking screw pick-up.

Double thread for more contact points leading to enhanced stability

Larger cross-section for improved mechanical resistance

Thread closer to screw head providing better bone purchase and improved stability

Self-holding Screw driver for effortless and secure locking screw pick-up
