Distal Tibial Intramedullary Nail (DTN) Instrument Set — a intramedullary nail from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
Clinical overview
The Distal Tibial Intramedullary Nail (DTN) is indicated for a variety of tibial conditions, including simple, spiral, comminuted, long oblique, and segmental shaft fractures (particularly of the distal tibia), as well as distal tibial metaphyseal fractures, non-/mal-unions; it may also be employed, often with specialized devices, for managing bone defects or limb length discrepancies (such as lengthening or shortening).

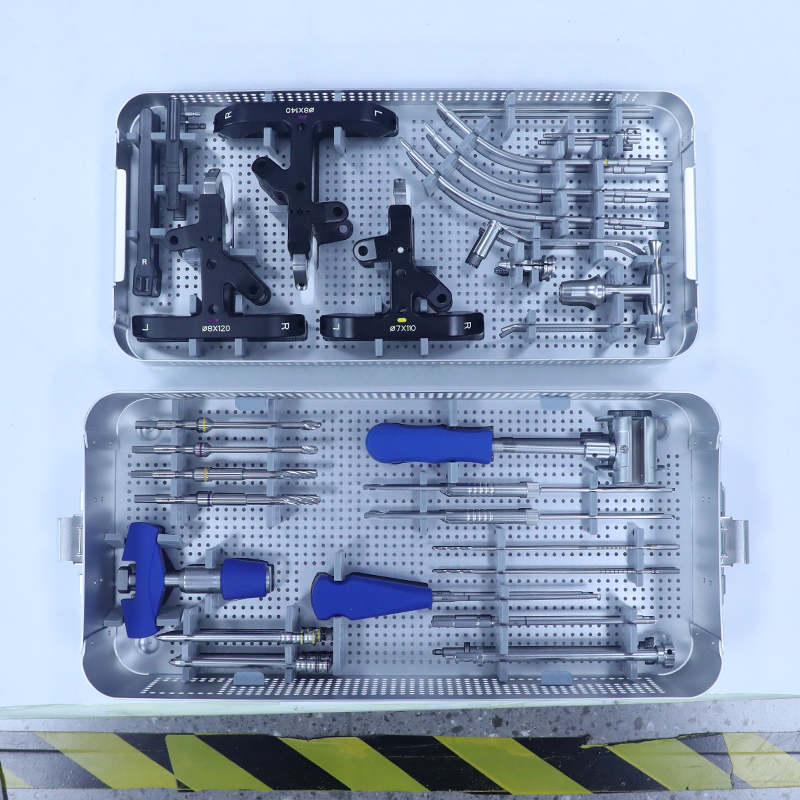

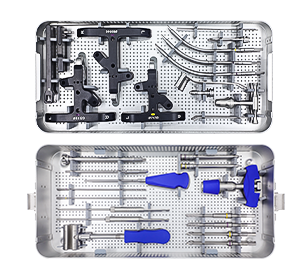

The set includes a hammer guide shaft, two T20 screwdrivers, drill bits of two diameters (Ø3.2/Ø2.8), curved and straight depth gauges, a sliding hammer, trocars of different specifications and matching cannulated sleeves (including an outer sleeve with an outer diameter of 8.0 and an inner diameter of 5.6), a guide wire holder, and various cannulated reamers (Ø7.5/Ø8.5) and entry reamers to meet precise drilling, depth measurement, and reaming requirements.

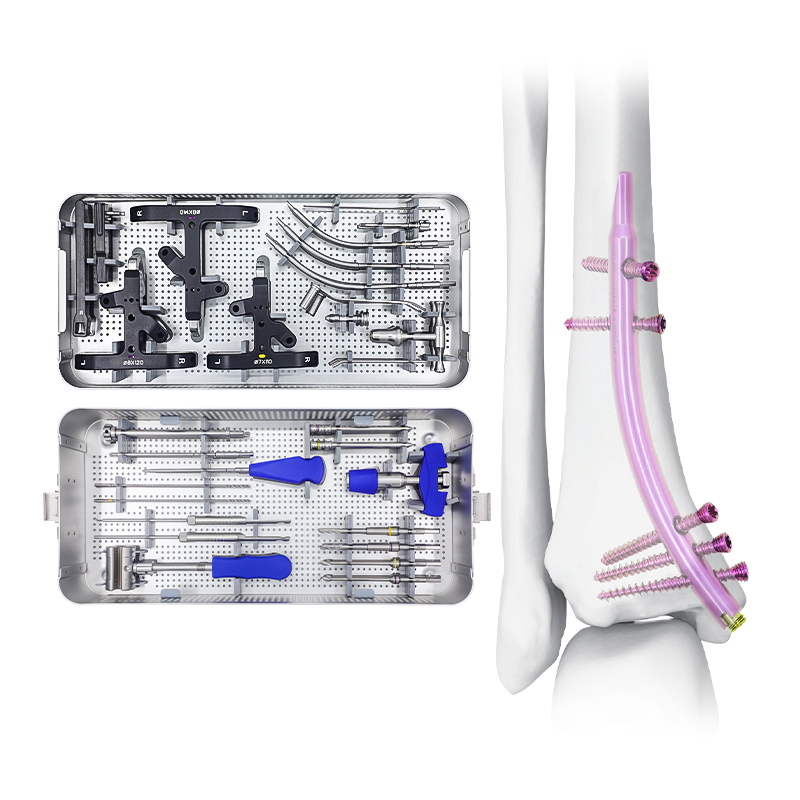

The distal tibia instrument set contains a variety of high-precision surgical tools for reduction and fixation of distal tibial fractures. The kit includes positioning arms, coupling connectors, aiming jigs of various specifications, trocars, connecting bolts, trial pieces, protective sleeves, quick couplings, wrenches, guide wires, and an aluminum storage box. The components work together to achieve precise positioning, stable fixation, and minimally invasive procedures, facilitating efficient and safe orthopedic surgeries.
The distal end of the main nail has a flat design, facilitating easy insertion into the medullary cavity.
Two angular locking screws at the proximal end prevent rotation and displacement of the fracture segment.
A special anatomical curvature ensures the main nail is optimally positioned within the medullary cavity.
Three intersecting angle locking screws at the distal end provide effective support and fixation.
Comprehensive listing of all products with specifications and features.
Updated: Feb 2024Detailed instructions on product usage, maintenance procedures, and safety guidelines.
Updated: May 2025Case1
Case2
Case3
Case4
Technical specifications
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
Documents & downloads
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
The instrument tray is logically arranged and the distal targeting jig lines up the interlocking screws accurately for short distal segments. Reduced my fluoroscopy time.
Dr. Veronica Ashcombe, MD, FRCS (Orth)Verified buyerOct 16, 2025
As the person reprocessing it, I appreciate that the caddies are well labelled and nothing wanders out of place. Instruments hold up to repeated sterilisation.
Devon Marsh, BMETVerified buyerJan 16, 2025
The set's distal aiming arm made the awkward distal locks reliable rather than freehand guesswork. Reaming and insertion instruments run smoothly.
Dr. Jamal Whitlock, MD, FAAOSDec 7, 2025
