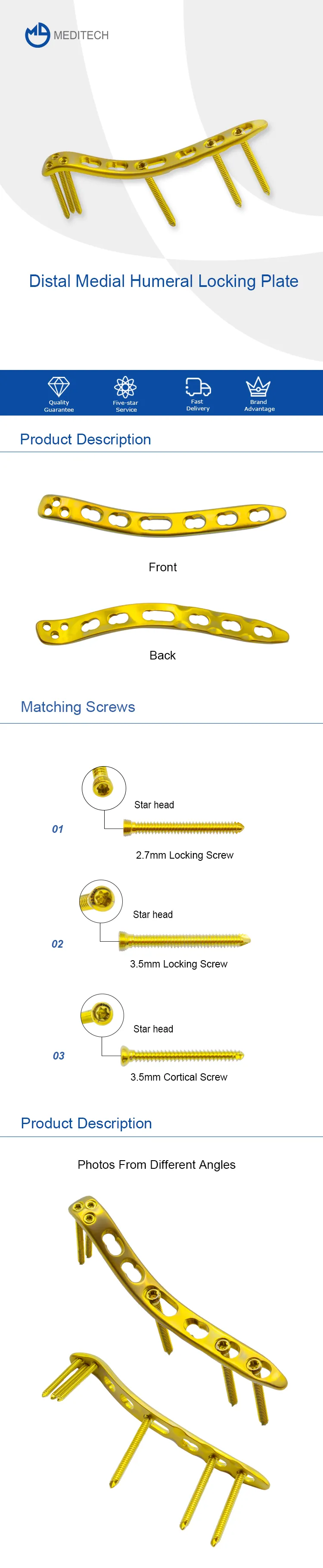

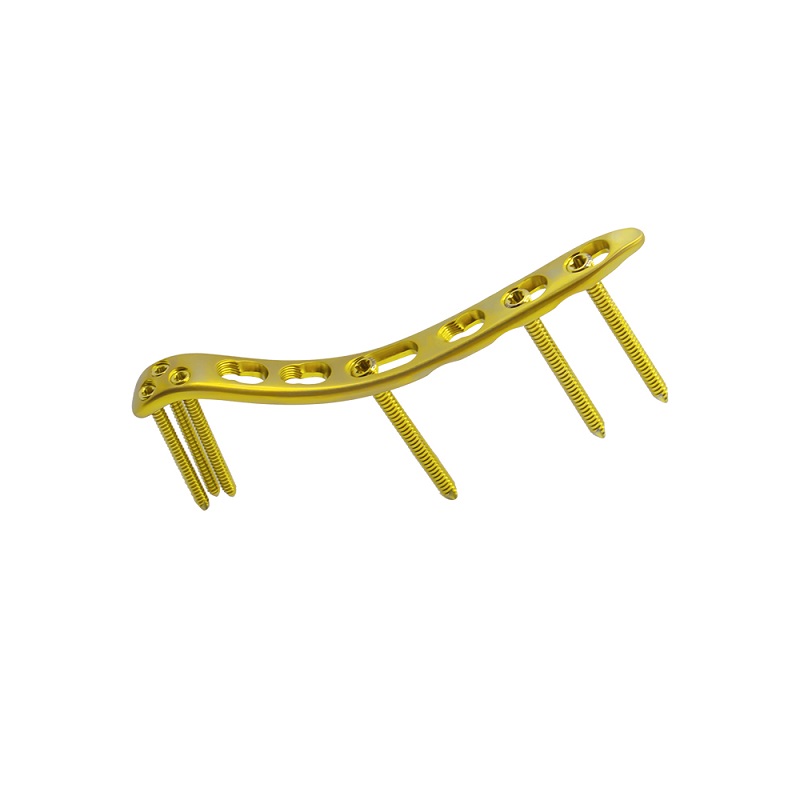

Distal Medial Humeral Locking Plate
Distal Medial Humeral Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-18
- MPN
- 5100-18
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
Anatomically precontoured plates
• Designed to reduce soft tissue irritation due to flat and rounded profiles
• Stable treatment with 2-plate-AO-technique, displaced by 90°
• Screw system with angular stability, 2.7 mm and 3.5 mm, for optimal load transfer
Extensive options for fixation
• 2.7 mm angular stable screws up to 60 mm in length for optimal anchoring in the distal block. Alternatively, 3.5 mm cortex screws can be used.
• Five options for screwing into the distal block permit the fixation of extremely distal fractures, especially in osteoporotic bone
• Three additional screws for the fixation of the capitellum
specifications
| Products | REF | Specification | Thickness | Width | Length |
| Distal Medial Humeral Locking Plate (Use 2.7/3.5 Locking Screw/3.5 Cortical Screw) | 5100-1801 | 4 holes L | 3 | 11.5 | 69 |
| 5100-1802 | 6 holes L | 3 | 11.5 | 95 | |
| 5100-1803 | 8 holes L | 3 | 11.5 | 121 | |
| 5100-1804 | 10 holes L | 3 | 11.5 | 147 | |
| 5100-1805 | 12 holes L | 3 | 11.5 | 173 | |
| 5100-1806 | 4 holes R | 3 | 11.5 | 69 | |
| 5100-1807 | 6 holes R | 3 | 11.5 | 95 | |
| 5100-1808 | 8 holes R | 3 | 11.5 | 121 | |
| 5100-1809 | 10 holes R | 3 | 11.5 | 147 | |
| 5100-1810 | 12 holes R | 3 | 11.5 | 173 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-18
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
