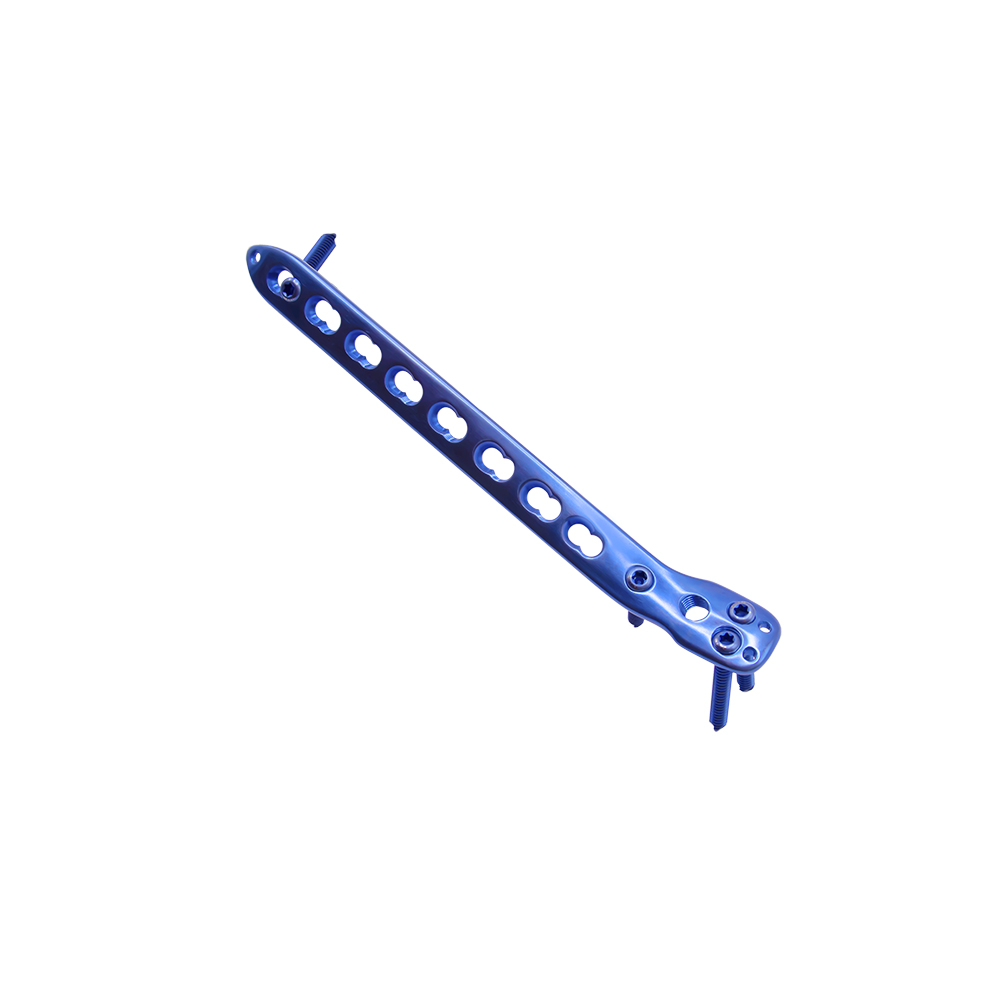

Distal Lateral Tibial Locking Plate-I
Distal Lateral Tibial Locking Plate-I — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-28
- MPN
- 5100-28
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
What is Distal Lateral Tibial Locking Plate?

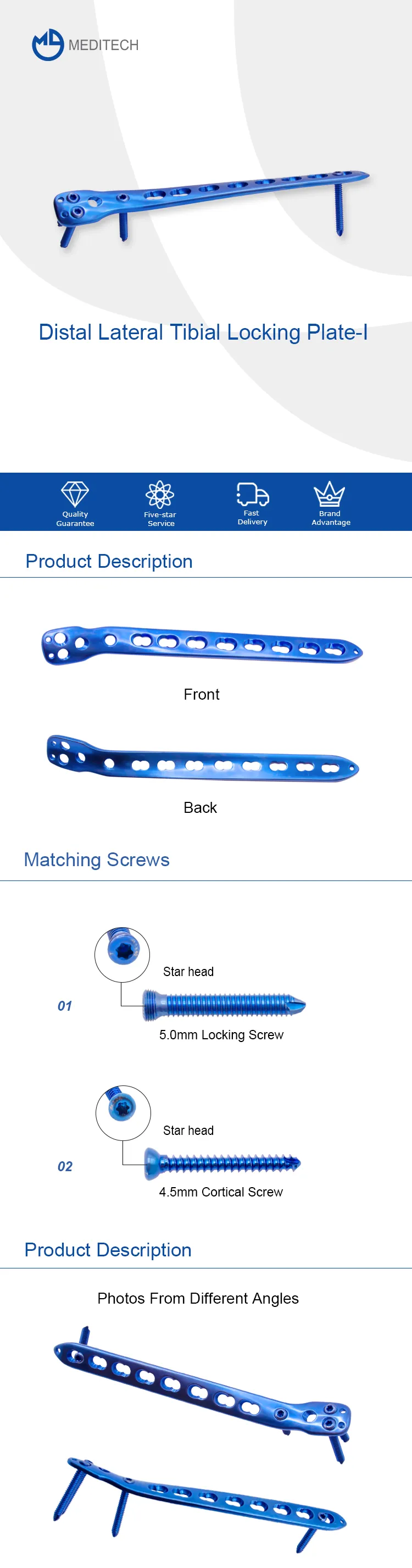

The Distal Lateral Tibial Locking Plate are part of the OrthoLimited Locking Compression Plate (LCP®) System, merging locking screw technology with conventional plating techniques. These anatomically shaped plates are available in stainless steel or titanium alloy with 5-13 hole configurations.
Plate Features:
Distal locking screws provide support for the articular surface
Anatomically shaped
Tapered tip for submuscular insertion
316L stainless steel or titanium alloy
Anatomic reduction: Anatomic plate profile and four parallel screws near the joint assist reduction of metaphysis to diaphysis to restore alignment and functional anatomy. Anatomic reduction is mandatory for intra-articular fractures to restore joint congruency.
Stable fixation: The combination of conventional and locking screws offers optimum fixation regardless of bone density.
Preservation of blood supply: Limited-contact plate design reduces plate-to-bone contact and helps to preserve the periosteal blood supply.
Indications:
The LCP Anterolateral Distal Tibia Plate is indicated for fractures, osteotomies, and nonunions of the distal tibia, particularly in osteopenic bone.
Indications:
| Products | REF | Specification | Thickness | Width | Length |
Distal Lateral Tibial Locking Plate-I (Use 5.0 Locking Screw/4.5 Cortical Screw) | 5100-2801 | 5 holes L | 3.6 | 16.5 | 122 |
| 5100-2802 | 7 holes L | 3.6 | 16.5 | 154 | |
| 5100-2803 | 9 holes L | 3.6 | 16.5 | 186 | |
| 5100-2804 | 11 holes L | 3.6 | 16.5 | 218 | |
| 5100-2805 | 13 holes L | 3.6 | 16.5 | 250 | |
| 5100-2806 | 5 holes R | 3.6 | 16.5 | 122 | |
| 5100-2807 | 7 holes R | 3.6 | 16.5 | 154 | |
| 5100-2808 | 9 holes R | 3.6 | 16.5 | 186 | |
| 5100-2809 | 11 holes R | 3.6 | 16.5 | 218 | |
| 5100-2810 | 13 holes R | 3.6 | 16.5 | 250 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-28
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
