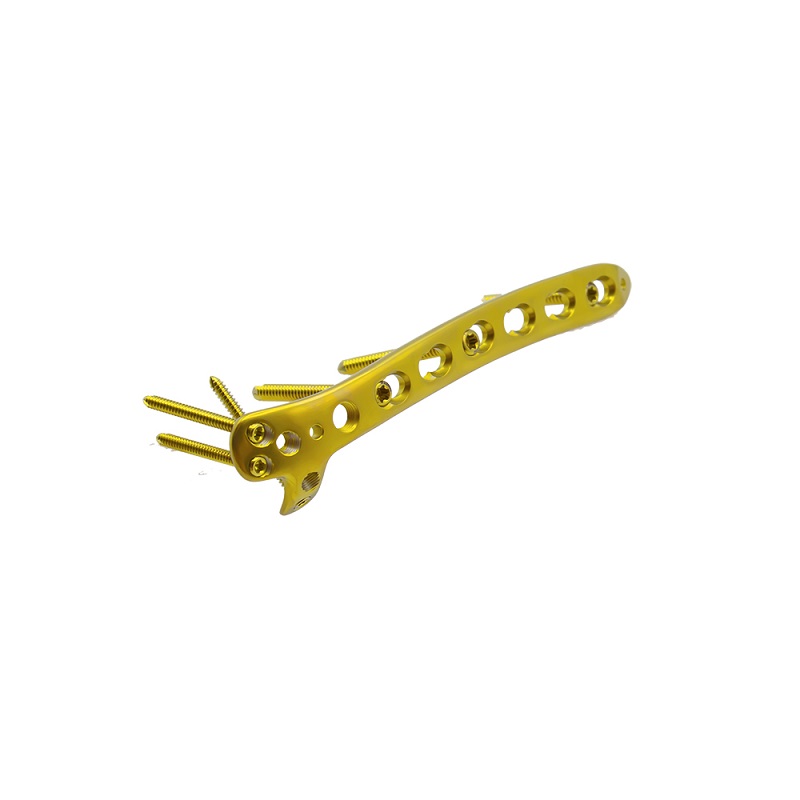

Distal Lateral Humeral Locking Plate
Distal Lateral Humeral Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-17
- MPN
- 5100-17
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
What is Distal Lateral Humeral Locking Plate？

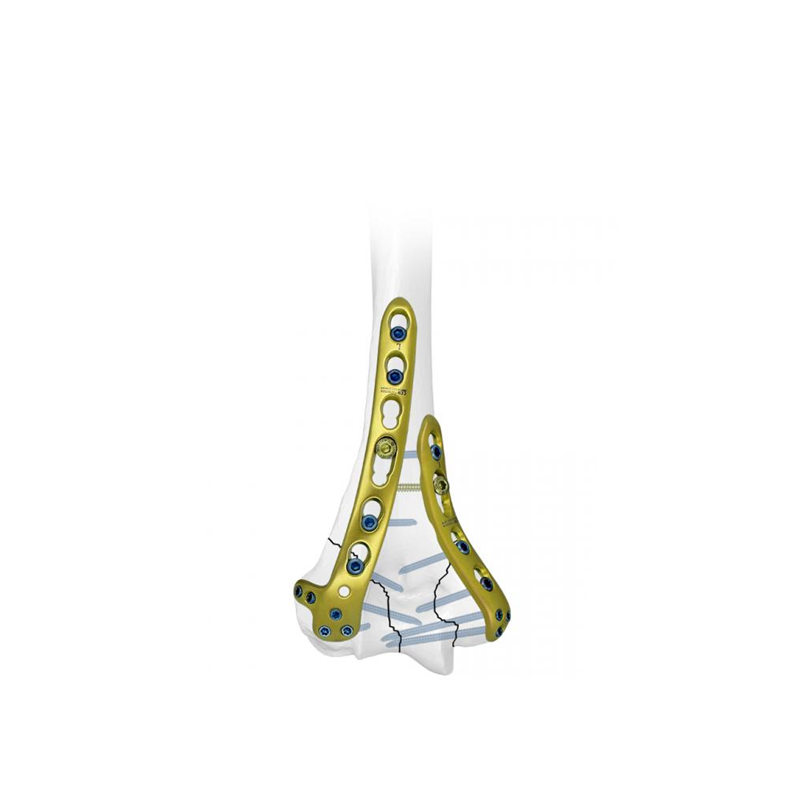

The GPC distal humeral locking plate with lateral support is indicated for fixing lateral column in intercondylar and supracondylar fractures of humerus and as a single plate in distal humerus fractures. It is available in stainless steel and titanium.It is available in 4 holes to 12 holes(2 holes increment).
Indications:
Intercondylar fracture distal humerus
Supracondylar fracture distal humerus
Osteotomy around distal humerus
Fracture non- union distal humerus
Specifications
Anatomically shaped- right or left
The plates are pre-shaped to match the anatomy of the distal humerus with a limited contact low profile design
Tapered tip for submuscular insertion with minimal soft tissue stripping
Uniform stiffness of all segments, prolonging fatigue life of the implant
Smaller area of post-fixation avascularity
The combination of conventional and locking screws offers optimum fixation regardless of bone density
Screw-heads are recessed into the plate holes for minimum screw prominence
Screw trajectory designed for optimal fixation of comminuted fractures
Bending of the distal part is recommended to adjust the optimal position of plate for placement of long screws through the articular block
Bending to be done in the region of combination holes as it frequently alters the thread pattern of locking hole
Available in both Titanium & Stainless steel
specifications
| Products | REF | Specification | Thickness | Width | Length |
| Distal Lateral Humeral Locking Plate (Use 2.7/3.5 Locking Screw/3.5 Cortical Screw) | 5100-1701 | 4 holes L | 3.2 | 12 | 86 |
| 5100-1702 | 6 holes L | 3.2 | 12 | 112 | |
| 5100-1703 | 8 holes L | 3.2 | 12 | 138 | |
| 5100-1704 | 10 holes L | 3.2 | 12 | 164 | |
| 5100-1705 | 12 holes L | 3.2 | 12 | 190 | |
| 5100-1706 | 4 holes R | 3.2 | 12 | 86 | |
| 5100-1707 | 6 holes R | 3.2 | 12 | 112 | |
| 5100-1708 | 8 holes R | 3.2 | 12 | 138 | |
| 5100-1709 | 10 holes R | 3.2 | 12 | 164 | |
| 5100-1710 | 12 holes R | 3.2 | 12 | 190 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-17
Standard instrument composition
What ships in the box
| Item | Quantity |
|---|---|
| Intercondylar fracture distal humerus | 1 |
| Supracondylar fracture distal humerus | 1 |
| Osteotomy around distal humerus | 1 |
| Fracture non- union distal humerus | 1 |
