DFN Distal Femur Intramedullary Nail T1100-46

DFN Distal Femur Intramedullary Nail T1100-46 — a intramedullary nail from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.

SKU: T1100-46
MPN: T1100-46
Brand: OrthoLimited
Manufactured by: OrthoLimited Inc.
Warehouse: EU
Availability: In stock

✓ CE marked
✓ ISO 13485
✓ Warranty included
✓ Worldwide shipping

Tags

Share

Regulatory: For professional surgical use only. Availability and certification vary by country; confirm local regulatory status before purchase or use.

Compare with similar items

Clinical overview

Product overview

DFN Distal Femurintramedullary Nail (Spiral Blade Screw Type)

DFN Distal Femurintramedullary Nail (Spiral Blade Screw Type) is an internal fixation implant designed for distal femoral fractures, featuring a blade-locking mechanism and retrograde insertion technique to enhance stability and anti-rotation, ideal for osteoporotic or complex fractures.

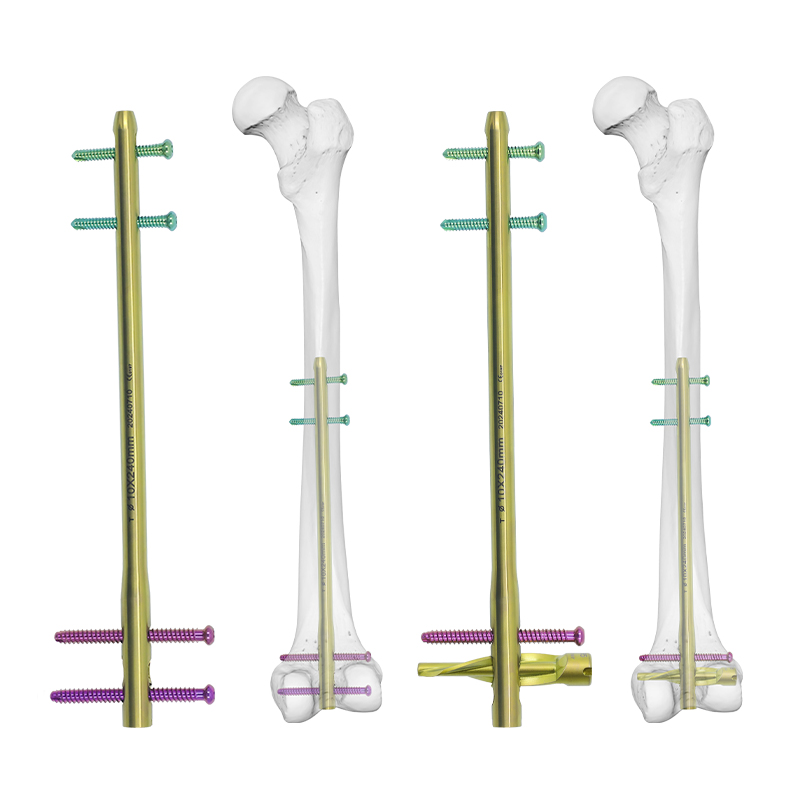

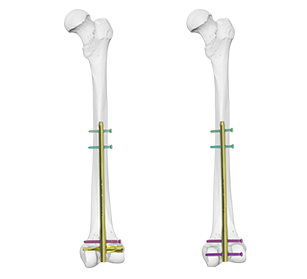

DFN Distal Femur Intramedullary Nail

Used for fixing distal femur fractures, featuring a spiral blade screw design for stable fixation.

Spiral Blade Screw

A specially designed screw to enhance the fixation effect of the intramedullary nail, suitable for various specifications.

6.0mm Locking Screw

6.0mm diameter locking screw used to strengthen the locking of the intramedullary nail, ensuring the stability of the fracture site.

6.0 Locking Screw End Cap

Used for the end cap of the 6.0mm locking screw to prevent loosening and ensure the fixation effect.

Spiral Blade Screw End Cap

Used for the end cap of the spiral blade screw to ensure the stability and safety of the screw.

5.0mm Locking Screw

5.0mm diameter locking screw used to strengthen the locking of the intramedullary nail, suitable for various specifications.

Product Advantage

Spiral Locking

Unique distal locking options The unique distal combination holes can used with standard locking screw or Spiral blade screw.

Standard Locking

Unique distal locking options The unique distal combination holes can used with standard locking screw or Spiral blade screw.

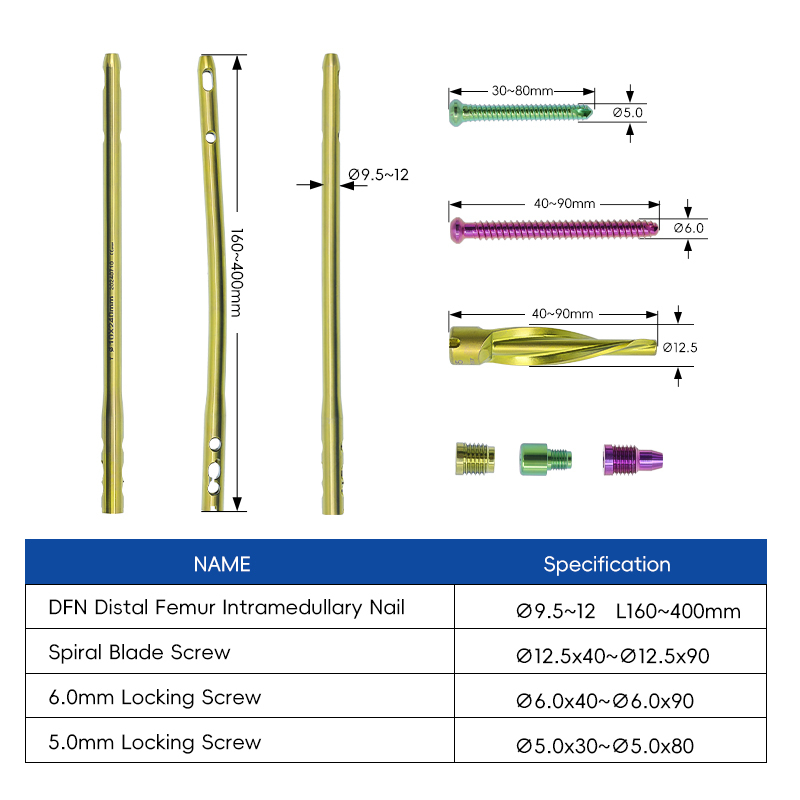

Diameter Length

Different diameters and lengths. Diameter from 9.5, 10, 11mm with length 160mm-400mm for different clinical needs.

End Cap Types

Three different end cap meet the different requirements of the locking the spiral blade screw and standard locking screw.

Supporting Products

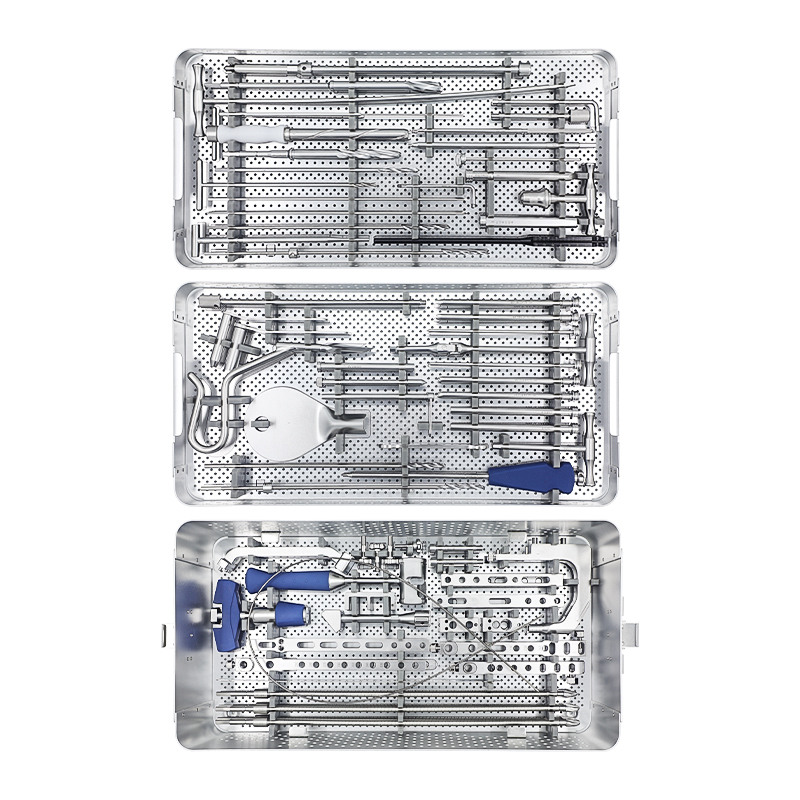

DFN Distal Femur Intramedullary Nail (Spiral Blade Screw Type) Instrument Set

DFN Distal Femur Intramedullary Nail (Spiral Blade Screw Type) Box

Documents Download

Catalog

PDF, 83.45 MB

Comprehensive listing of all products with specifications and features.

Updated: Feb 2024

Surgical Technique

PDF, 23.30MB

Detailed instructions on product usage, maintenance procedures, and safety guidelines.

Updated: May 2025

X-Ray

Case1

Case2

Product Series

Spine

Intramedullary Nail

Locking Plate

Non-locking Plate

Power Tool

External Fixator

Sterilization Container

CMF/Maxillofacial

Arthroscopy System

Hip & Knee Prosthesis

Veterinary

Kyphoplasty

Technical specifications

Engineering at a glance

Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.

Model: T1100-46
Material: Titanium
Certification: CE, ISO 9001, ISO 13485
