Cortical Screw
Cortical Screw — a orthopedic bone screw from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 4100-81
- MPN
- 4100-81
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview

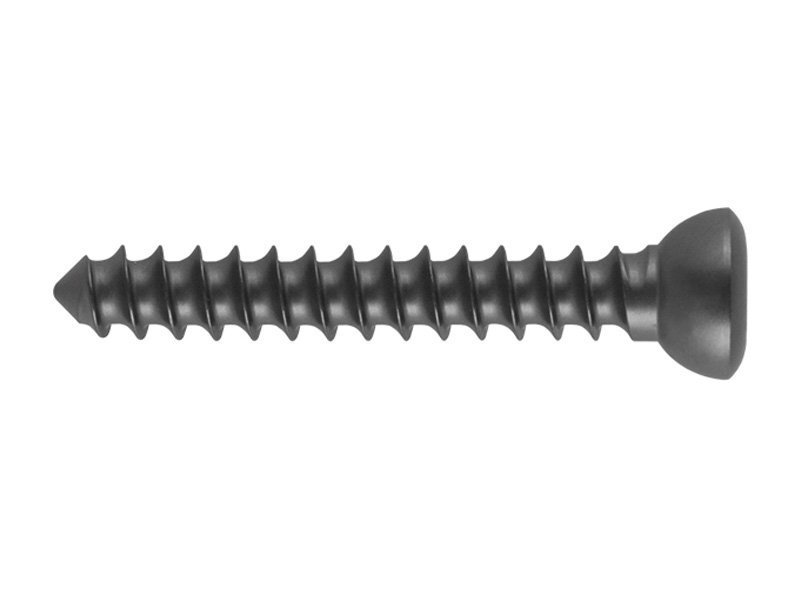

What is Cortex Screw？
Cortical screws are defined by their smaller pitch and greater number of threads. Their thread diameter to core diameter ratio is less, and they are fully threaded. As their name suggests, cortical screws are used in cortical bone; also known as compact bone, this is the dense outer surface of bone that forms a protective layer around the internal cavity.
It makes up nearly 80% of skeletal mass and is extremely important to body strucure and weight bearing (it is highly resistant to bending and torsion).
Cortical screw specifications
2.0mm Cortical screw
| Name | specifications | REF(stainless steel） | REF(titanium alloy） |
| 2.0mm Cortical screw | 2.0*6mm | S4100-8101 | T4100-8101 |
| 2.0*8mm | S4100-8102 | T4100-8102 | |
| 2.0*10mm | S4100-8103 | T4100-8103 | |
| 2.0*12mm | S4100-8104 | T4100-8104 | |
| 2.0*14mm | S4100-8105 | T4100-8105 | |
| 2.0*16mm | S4100-8106 | T4100-8106 | |
| 2.0*18mm | S4100-8107 | T4100-8107 | |
| 2.0*20mm | S4100-8108 | T4100-8108 |
3.5mm Cortical screw
| Name | specifications | REF(stainless steel） | REF(titanium alloy） |
| 3.5mm Cortical screw | 3.5*10mm | S4100-8317 | T4100-8317 |
| 3.5*12mm | S4100-8301 | T4100-8301 | |
| 3.5*14mm | S4100-8302 | T4100-8302 | |
| 3.5*16mm | S4100-8303 | T4100-8303 | |
| 3.5*18mm | S4100-8304 | T4100-8304 | |
| 3.5*20mm | S4100-8305 | T4100-8305 | |
| 3.5*22mm | S4100-8306 | T4100-8306 | |
| 3.5*24mm | S4100-8307 | T4100-8307 | |
| 3.5*26mm | S4100-8308 | T4100-8308 | |
| 3.5*28mm | S4100-8309 | T4100-8309 | |
| 3.5*30mm | S4100-8310 | T4100-8310 | |
| 3.5*32mm | S4100-8311 | T4100-8311 | |
| 3.5*34mm | S4100-8312 | T4100-8312 | |
| 3.5*36mm | S4100-8313 | T4100-8313 | |
| 3.5*38mm | S4100-8314 | T4100-8314 | |
| 3.5*40mm | S4100-8315 | T4100-8315 | |
| 3.5*42mm | S4100-8316 | T4100-8316 |
4.5mm Cortical screw
| Name | specifications | REF(stainless steel） | REF(titanium alloy） |
4.5mm Cortical screw | 4.5*20mm | S4100-8501 | T4100-8501 |
| 4.5*22mm | S4100-8502 | T4100-8502 | |
| 4.5*24mm | S4100-8503 | T4100-8503 | |
| 4.5*26mm | S4100-8504 | T4100-8504 | |
| 4.5*28mm | S4100-8505 | T4100-8505 | |
| 4.5*30mm | S4100-8506 | T4100-8506 | |
| 4.5*32mm | S4100-8507 | T4100-8507 | |
| 4.5*34mm | S4100-8508 | T4100-8508 | |
| 4.5*36mm | S4100-8509 | T4100-8509 | |
| 4.5*38mm | S4100-8510 | T4100-8510 | |
| 4.5*40mm | S4100-8511 | T4100-8511 | |
| 4.5*42mm | S4100-8512 | T4100-8512 | |
| 4.5*44mm | S4100-8513 | T4100-8513 | |
| 4.5*46mm | S4100-8514 | T4100-8514 | |
| 4.5*48mm | S4100-8515 | T4100-8515 | |
| 4.5*50mm | S4100-8516 | T4100-8516 | |
| 4.5*52mm | S4100-8517 | T4100-8517 | |
| 4.5*54mm | S4100-8518 | T4100-8518 | |
| 4.5*56mm | S4100-8519 | T4100-8519 | |
| 4.5*58mm | S4100-8520 | T4100-8520 | |
| 4.5*60mm | S4100-8521 | T4100-8521 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 4100-81
- Material
- Stainless Steel / Titanium
- Certification
- CE, ISO 9001, ISO 13485
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
