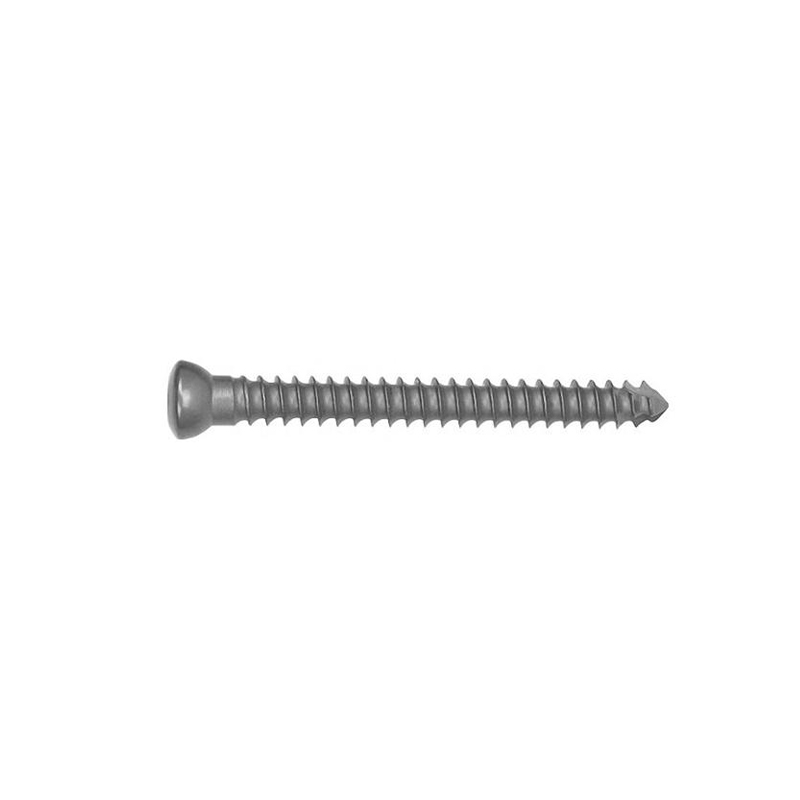

Cancellous Screw
Cancellous Screw — a orthopedic bone screw from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- MPN
- 4100-89
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
What are cancellous screws？
Cancellous screws have a larger pitch, and a larger thread diameter to core diameter ratio. They can be both fully or partially threaded, and — no surprise here — are used in cancellous bone. Cancellous bone describes the spongy bone found at the ends of long bones, in the pelvic bones, ribs, skull, and the vertebrae in the spinal column.
cancellous screws specifications
4.0mm Cancellous Screw
| name | specifications | REF(stainless steel） | REF(titanium alloy） |
4.0mm Cancellous Screw | 4.0*12mm | S4100-8916 | T4100-8916 |
| 4.0*14mm | S4100-8917 | T4100-8917 | |
| 4.0*16mm | S4100-8918 | T4100-8918 | |
| 4.0*18mm | S4100-8919 | T4100-8919 | |
| 4.0*20mm | S4100-8920 | T4100-8920 | |
| 4.0*22mm | S4100-8901 | T4100-8901 | |
| 4.0*24mm | S4100-8902 | T4100-8902 | |
| 4.0*26mm | S4100-8903 | T4100-8903 | |
| 4.0*28mm | S4100-8904 | T4100-8904 | |
| 4.0*30mm | S4100-8905 | T4100-8905 | |
| 4.0*32mm | S4100-8906 | T4100-8906 | |
| 4.0*34mm | S4100-8907 | T4100-8907 | |
| 4.0*36mm | S4100-8908 | T4100-8908 | |
| 4.0*38mm | S4100-8909 | T4100-8909 | |
| 4.0*40mm | S4100-8910 | T4100-8910 | |
| 4.0*42mm | S4100-8911 | T4100-8911 | |
| 4.0*44mm | S4100-8912 | T4100-8912 | |
| 4.0*46mm | S4100-8913 | T4100-8913 | |
| 4.0*48mm | S4100-8914 | T4100-8914 | |
| 4.0*50mm | S4100-8915 | T4100-8915 |
4.0mm Cancellous Screw Half-threaded
| name | specifications | REF(stainless steel） | REF(titanium alloy） |
4.0mm Cancellous Screw | 4.0*20mm | S4100-8921 | T4100-8921 |
| 4.0*22mm | S4100-8922 | T4100-8922 | |
| 4.0*24mm | S4100-8923 | T4100-8923 | |
| 4.0*26mm | S4100-8924 | T4100-8924 | |
| 4.0*28mm | S4100-8925 | T4100-8925 | |
| 4.0*30mm | S4100-8926 | T4100-8926 | |
| 4.0*32mm | S4100-8927 | T4100-8927 | |
| 4.0*34mm | S4100-8928 | T4100-8928 | |
| 4.0*36mm | S4100-8929 | T4100-8929 | |
| 4.0*38mm | S4100-8930 | T4100-8930 | |
| 4.0*40mm | S4100-8931 | T4100-8931 | |
| 4.0*42mm | S4100-8932 | T4100-8932 | |
| 4.0*44mm | S4100-8933 | T4100-8933 | |
| 4.0*46mm | S4100-8934 | T4100-8934 | |
| 4.0*48mm | S4100-8935 | T4100-8935 | |
| 4.0*50mm | S4100-8936 | T4100-8936 |
6.5mm Cancellous Screw Full-threaded
| name | specifications | REF(stainless steel） | REF(titanium alloy） |
6.5mm Cancellous Screw | 6.5*30mm | S4100-9313 | T4100-9313 |
| 6.5*35mm | S4100-9314 | T4100-9314 | |
| 6.5*40mm | S4100-9301 | T4100-9301 | |
| 6.5*45mm | S4100-9302 | T4100-9302 | |
| 6.5*50mm | S4100-9303 | T4100-9303 | |
| 6.5*55mm | S4100-9304 | T4100-9304 | |
| 6.5*60mm | S4100-9305 | T4100-9305 | |
| 6.5*65mm | S4100-9306 | T4100-9306 | |
| 6.5*70mm | S4100-9307 | T4100-9307 | |
| 6.5*75mm | S4100-9308 | T4100-9308 | |
| 6.5*80mm | S4100-9309 | T4100-9309 | |
| 6.5*85mm | S4100-9310 | T4100-9310 | |
| 6.5*90mm | S4100-9311 | T4100-9311 | |
| 6.5*95mm | S4100-9312 | T4100-9312 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 4100-89
- Material
- Stainless Steel / Titanium
- Certification
- CE, ISO 9001, ISO 13485
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
