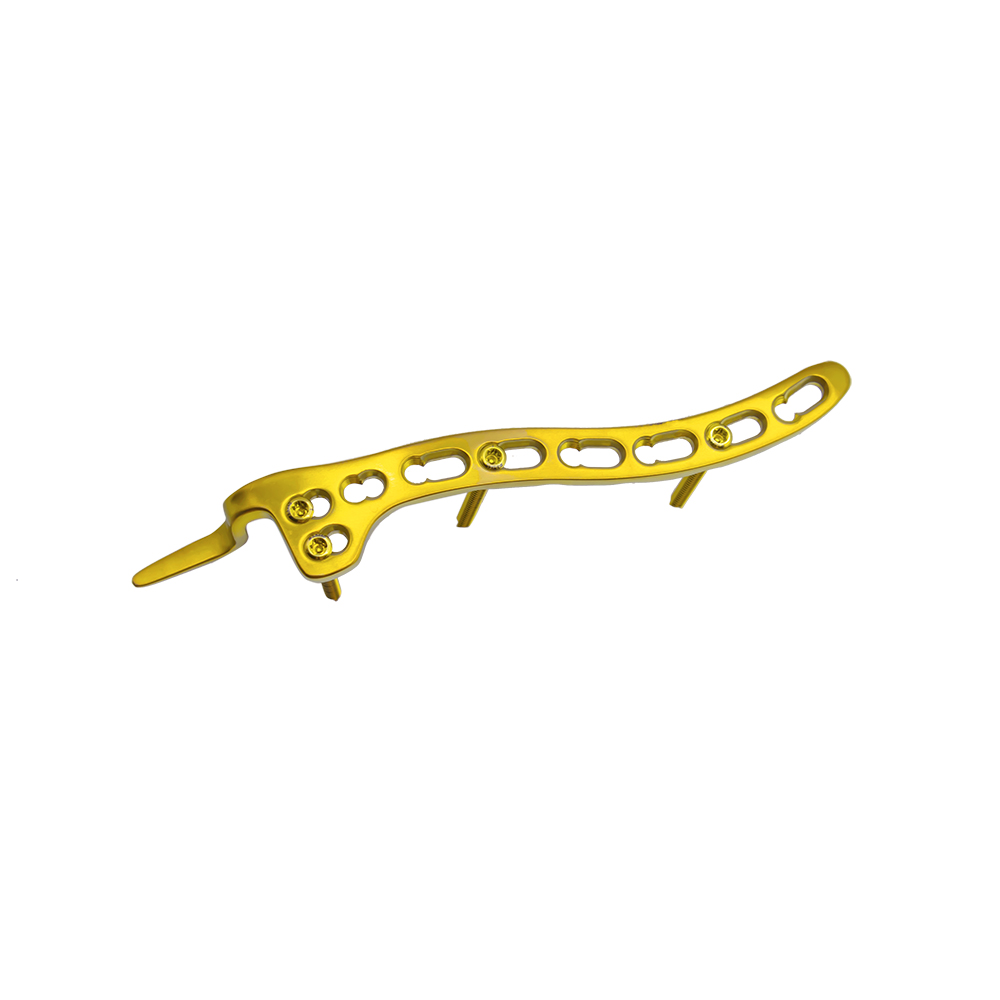

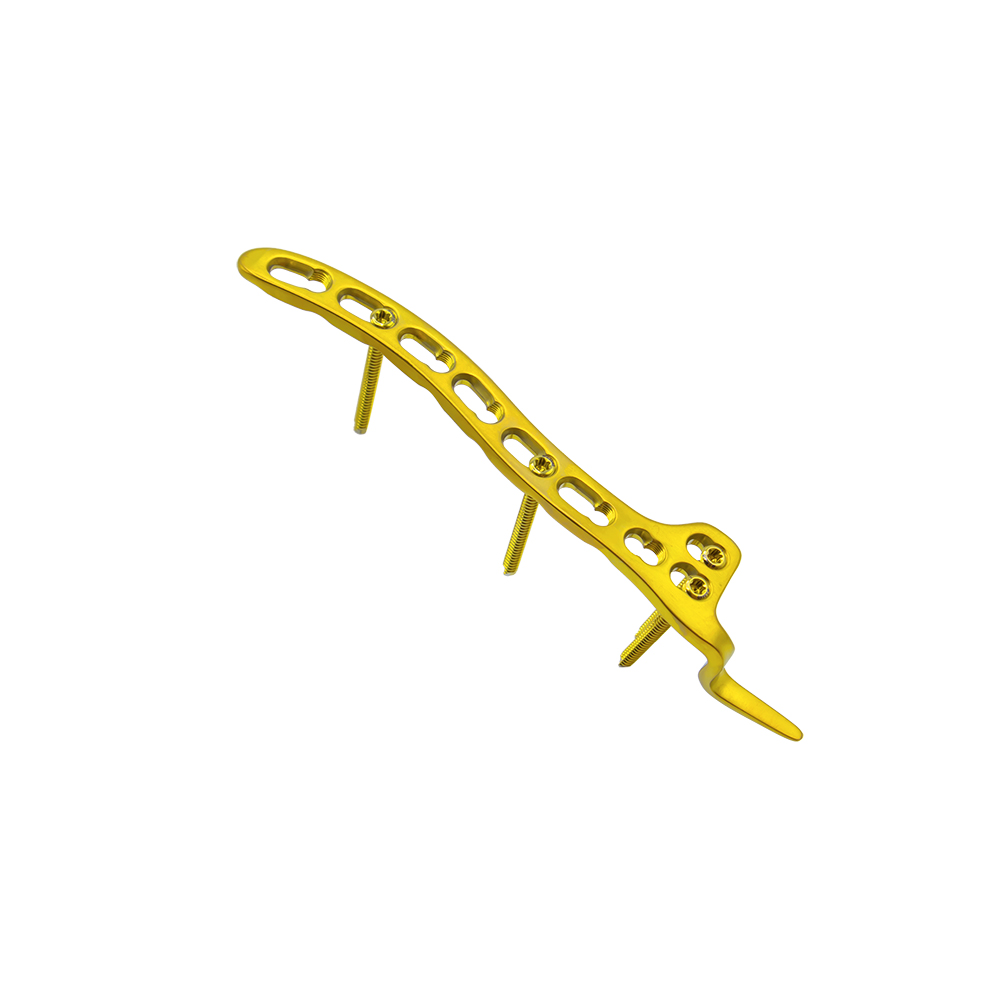

Clavicle Hook Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
Clinical overview
The Clavicle Hook Plate provides a single solution for fixation of both lateral clavicle fractures and acromioclavicular joint injuries. This plate and screw construct allows early rotational mobility of the shoulder.
• Lateral clavicle fractures
• Dislocations of the acromioclavicular joint
• Dynamic compression screw holes accept 3.5 mm cortex and 4.0 mm cancellous bone screws
• Compatible with the 3.5 mm DCP Drill Guide [322.32] or the 3.5 mm Universal Drill Guide [323.36]
• Anterolateral screw hole provides additional options for screw fixation in the lateral clavicle
• Hook provides additional support to both lateral clavicle fractures and acromioclavicular joint dislocations
• Plates available with 2、3、4 、5 and 6 holes
• Precontoured in left and right plates
• Available in commercially pure (CP) titanium or 316L stainless steel
• Offset hook design to avoid insertion of hook into acromioclavicular ligament
| Products | REF | Specification | Thickness | Width | Length |
| Clavicle Hook Locking Plate (Use 3.5 Locking Screw/3.5 Cortical Screw/4.0 Cancellous Screw ) | 5100-0601 | 2 holes L | 3 | 11.5 | 89 |
| 5100-0602 | 3 holes L | 3 | 11.5 | 103 | |
| 5100-0603 | 4 holes L | 3 | 11.5 | 119 | |
| 5100-0604 | 5 holes L | 3 | 11.5 | 134 | |
| 5100-0605 | 6 holes L | 3 | 11.5 | 148 | |
| 5100-0606 | 2 holes R | 3 | 11.5 | 89 | |
| 5100-0607 | 3 holes R | 3 | 11.5 | 103 | |
| 5100-0608 | 4 holes R | 3 | 11.5 | 119 | |
| 5100-0609 | 5 holes R | 3 | 11.5 | 134 | |
| 5100-0610 | 6 holes R | 3 | 11.5 | 148 |
Technical specifications
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
Documents & downloads
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
The subacromial hook seats reliably and the plate contour matches the clavicular curve well, giving good stability for distal third and AC disruptions. Reduction held firmly on follow-up radiographs.
Dr. Gareth Whitcombe, MD, FRCS (Orth)Verified buyerMar 24, 2026
The proximal locking cluster gives dependable purchase in the medial fragment and the hook rests well under the acromion. A dependable option for these awkward lateral fractures.
Dr. Tomas Reiner, MD, FACSSep 24, 2024
Fixation is rigid and the locking screws engage cleanly. The hook depth needs careful selection to avoid subacromial irritation, but that is the nature of the design rather than a fault of the plate.
Dr. Amara Okonkwo, MD, FAAOSJul 16, 2024
