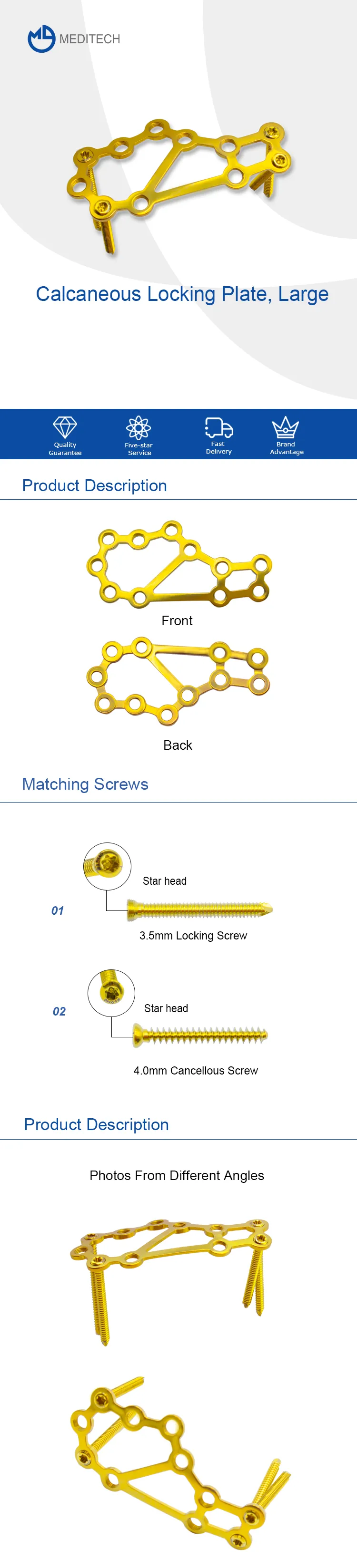

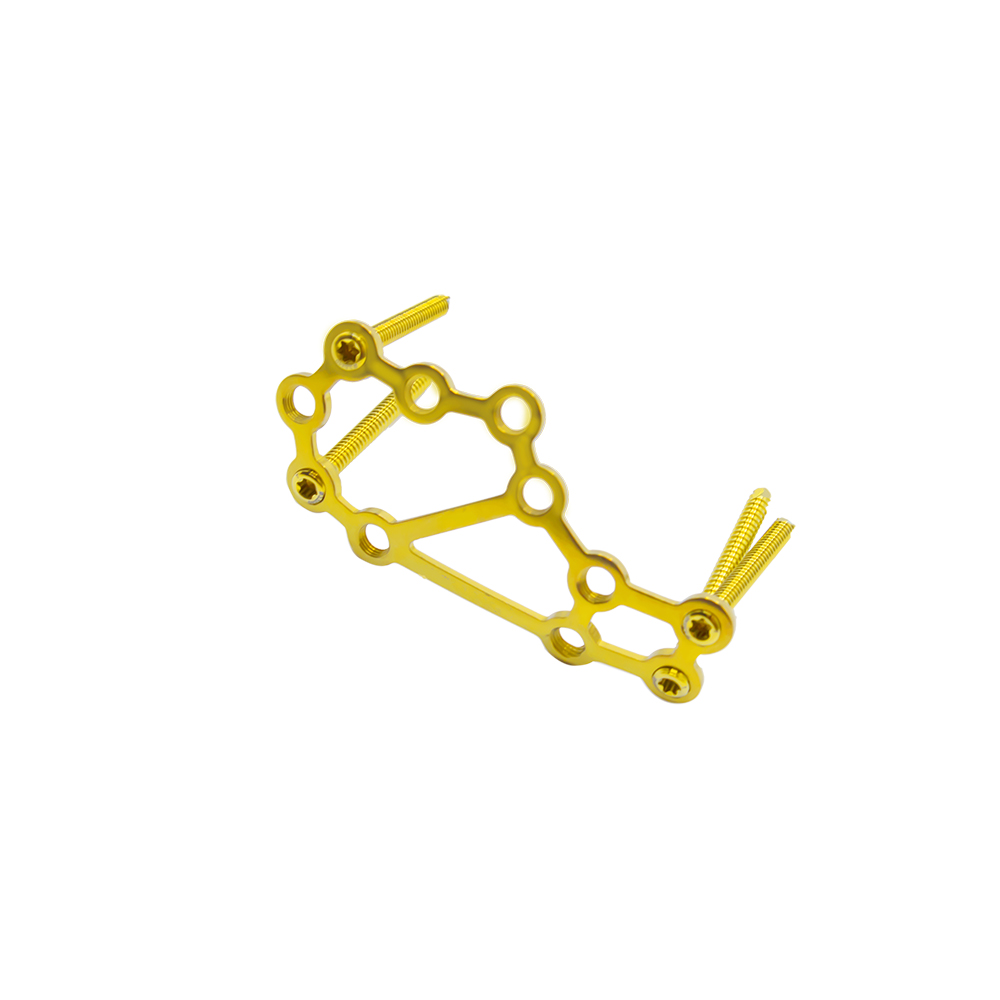

Calcaneal Locking Plate
Calcaneal Locking Plate — a orthopedic fixation plate from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- 5100-38
- MPN
- 5100-38
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
Plate features
• Available in small, large and extra-large in left and right versions
• 11 locking holes available
• Bendable tabs
• Locking holes throughout the plate for the screws buttressing the articular surface
• Lateral application
• Locking scr
Threaded locking holes
• Provides a fixed-angle construct to buttress surfaces
• Permits multiple points of fixation
• Are compatible with standard 2.7 mm and 3.5 mm cortex screws as alternatives to, or in conjunction with, 3.5 mm locking screws
specifications
| Products | REF | Specification | Thickness | Width | Length |
| Calcaneous Locking Plate-I (Use 3.5 Locking Screw) | 5100-3801 | Small Right | 2 | 34 | 60 |
| 5100-3802 | Small Left | 2 | 34 | 60 | |
| 5100-3803 | Medium Right | 2 | 34.5 | 67 | |
| 5100-3804 | Medium Left | 2 | 34.5 | 67 | |
| 5100-3805 | Large Right | 2 | 35 | 73 | |
| 5100-3806 | Large Left | 2 | 35 | 73 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-38
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
