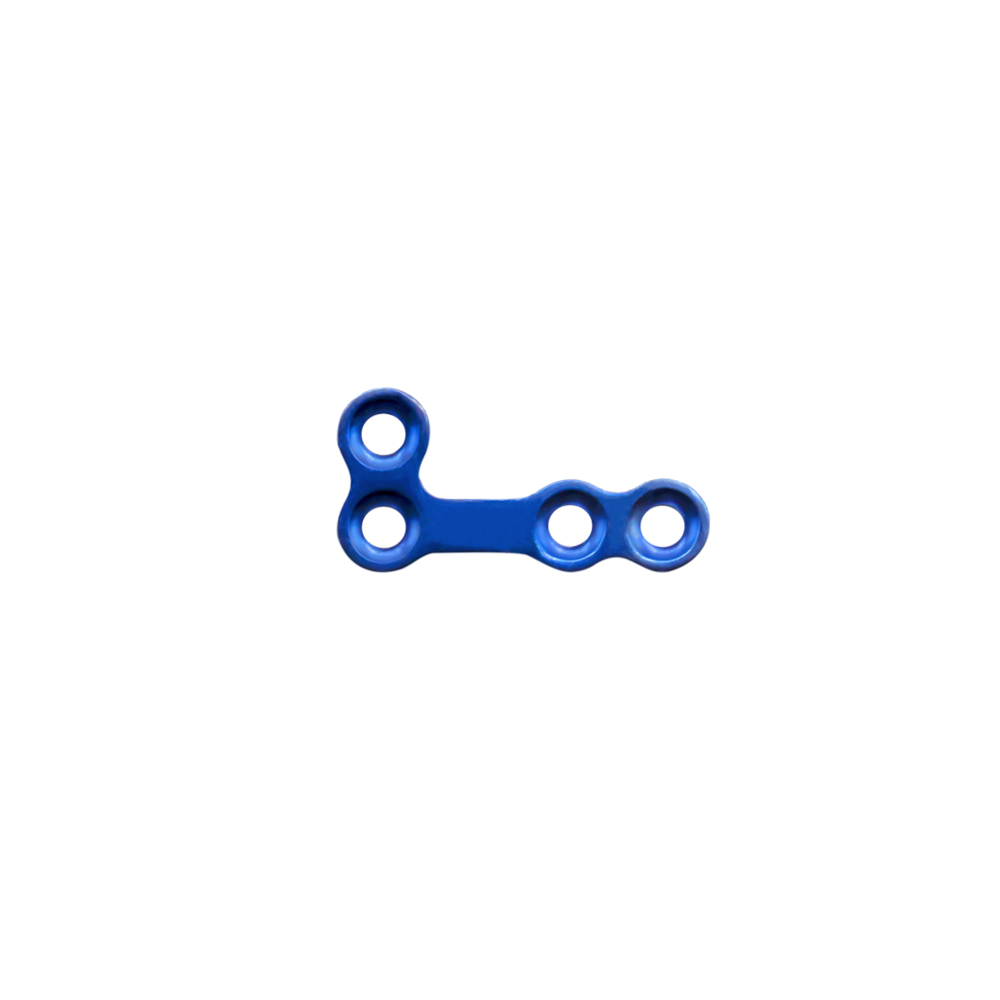

1.5 mm 90° L-type locking plate for maxillofacial fixation — 0.6 mm titanium, 4-hole angular-stable construct for orthognathic osteotomy.
Clinical overview
| Name | REF | Description |
| 1.5mm 90° L-ype Locking Plate (Thickness:0.6mm) | 2215-0112 | 4 holes 16mm |
• connect rod part of plate has line etching in every 1mm, easy moulding.
• different product with different color, convenient for clinician operation
φ1.5mm self-drilling screw
φ1.5mm self-tapping screw
The doctor discusses the operation plan with the patient, carries out the operation after the patient agrees, carries out the orthodontic treatment according to the plan, eliminates the interference of the teeth, and enables the operation to smoothly move the cut bone segment to the designed correction position.
According to the specific situation of orthognathic treatment, evaluate and guess the surgical plan, and adjust it if necessary.
Preoperative preparation was performed for the patients, and further analysis was made on the surgical plan, expected effect and possible problems.
The patient underwent orthognathic surgery.
Technical specifications
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
Documents & downloads
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
