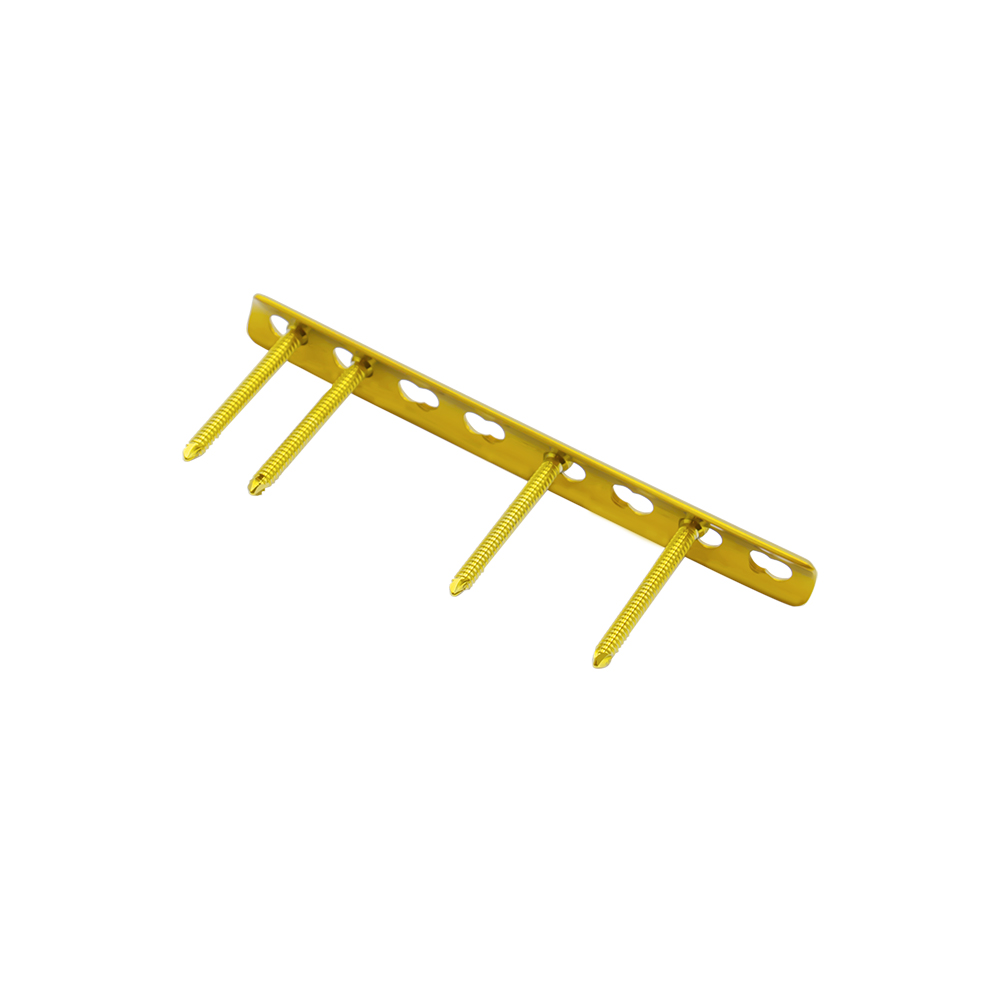

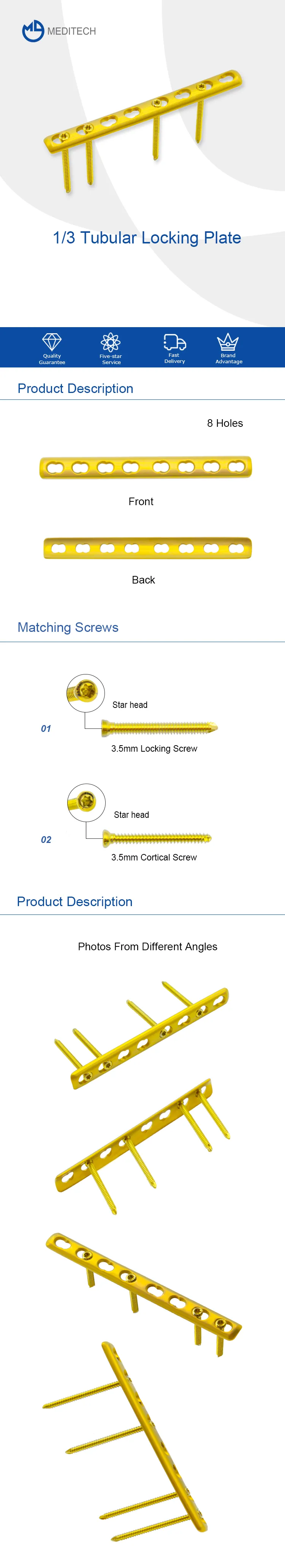

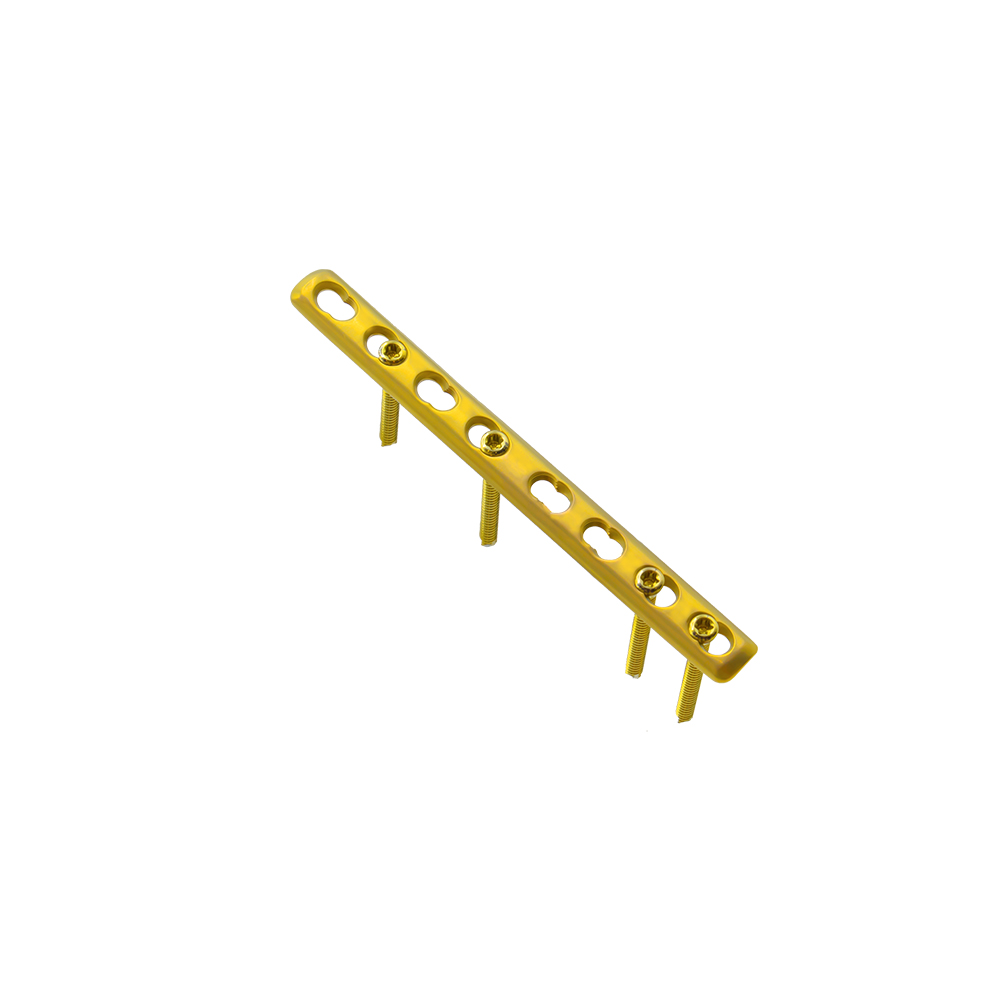

1/3 Tubular Locking Plate
Low-profile 3.5 mm one-third tubular locking plate with combi holes for distal fibula, ankle and midfoot fractures — titanium or stainless steel, 5–12 holes.
- SKU
- 5100-02
- MPN
- 5100-02
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
3.5 mm Locking One Third Tubular Plates Specification
Plates available holes are 5, 6, 7, 8, 9, 10 and 12.
Plate has combi holes and round holes. Combi holes allow fixation with locking screws in the threaded section and cortex screws in the dynamic compression unit section for compression.
The shaft holes accept 3.5 mm locking screws in the threaded portion or 3.5 mm cortical screws in the compression portion.
3.5 mm Locking One Third Tubular Plates allow implant placement to address the individual fracture pattern.
Choice of different lengths of plate eliminates the need to cut plates.
Available in both Titanium and Stainless steel.
locking plate increases construct stability, decreases risk of screw back-out and subsequent loss of reduction. It also reduces the need for precise anatomic plate contouring and minimizes the risk of stripped screw holes.
Indications
Small bone fractures in the area of small fragments
Midfoot fractures
Fractures of the upper fibular Weber ankle joint
specifications
| Products | REF | Specification | Thickness | Width | Length |
1/3 Tubular Locking Plate Use 3.5 Locking Screw/3.5 Cortical Screw | 5100-0201 | 5 holes | 2 | 10 | 71 |
| 5100-0202 | 6 holes | 2 | 10 | 84 | |
| 5100-0203 | 7 holes | 2 | 10 | 97 | |
| 5100-0204 | 8 holes | 2 | 10 | 110 | |
| 5100-0205 | 9 holes | 2 | 10 | 123 | |
| 5100-0206 | 10 holes | 2 | 10 | 136 | |
| 5100-0207 | 12 holes | 2 | 10 | 162 |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- 5100-02
Standard instrument composition
What ships in the box
| Item | Quantity |
|---|---|
| Small bone fractures in the area of small fragments | 1 |
| Midfoot fractures | 1 |
| Fractures of the upper fibular Weber ankle joint | 1 |
