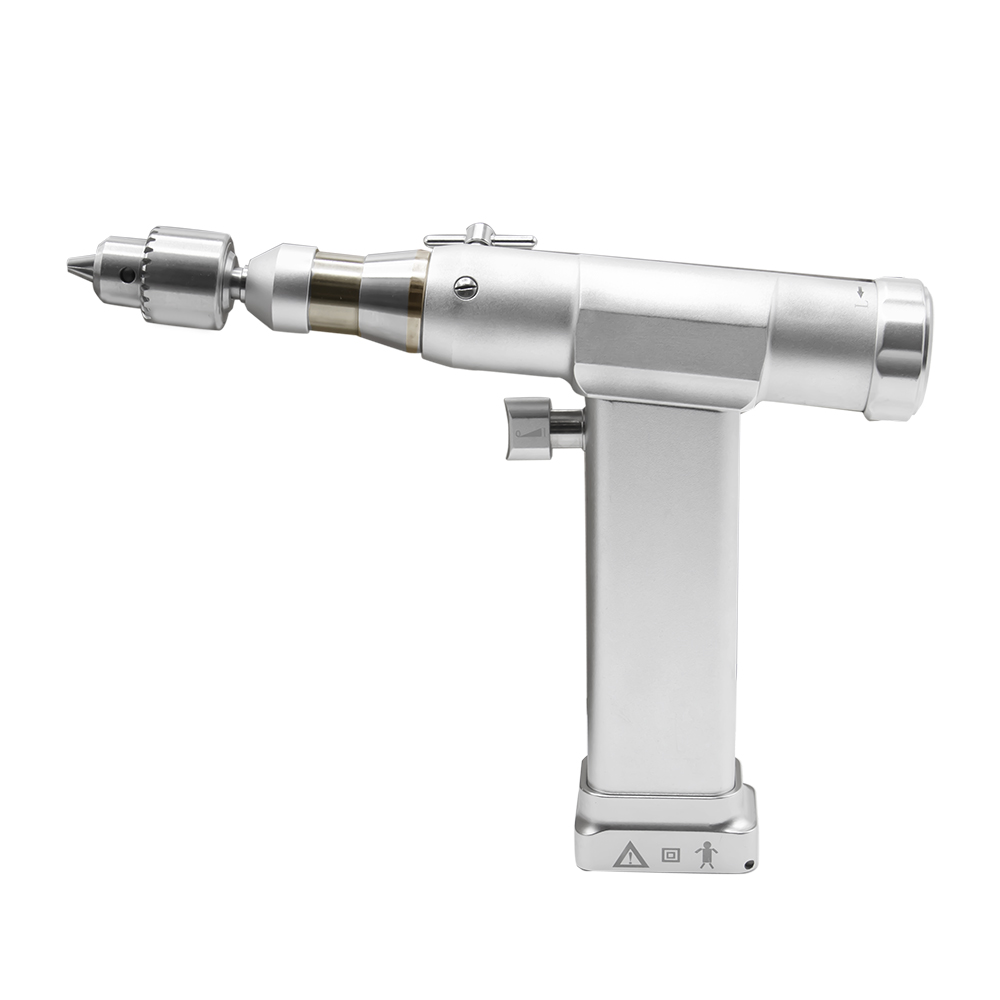

Multi-functional Bone Drill

Technical Parameters:

1, The host operating voltage: 7.2V, output power: 80W

2, Charger input voltage: 100-240V

3, The battery voltage is 13.2V, charging takes 2 hours

4, Bone drill assembly speed / swing frequency: 0-1200rpm

5, Pendulum saw assembly speed / swing frequency: 0-15000rpm, swing angle 4 ± 0.5 °

6, Small AO bone transfer component speed / swing frequency: 0-1200rpm

7, K-wire needle assembly speed / swing frequency: 0-1200rpm

Features:

1, The body is small and light, can be quickly loaded and unloaded, suitable for carrying.

2, It can withstand high temperature 135°C sterilization and anti-virus.

3, Smart shape, suitable for small and medium pets.

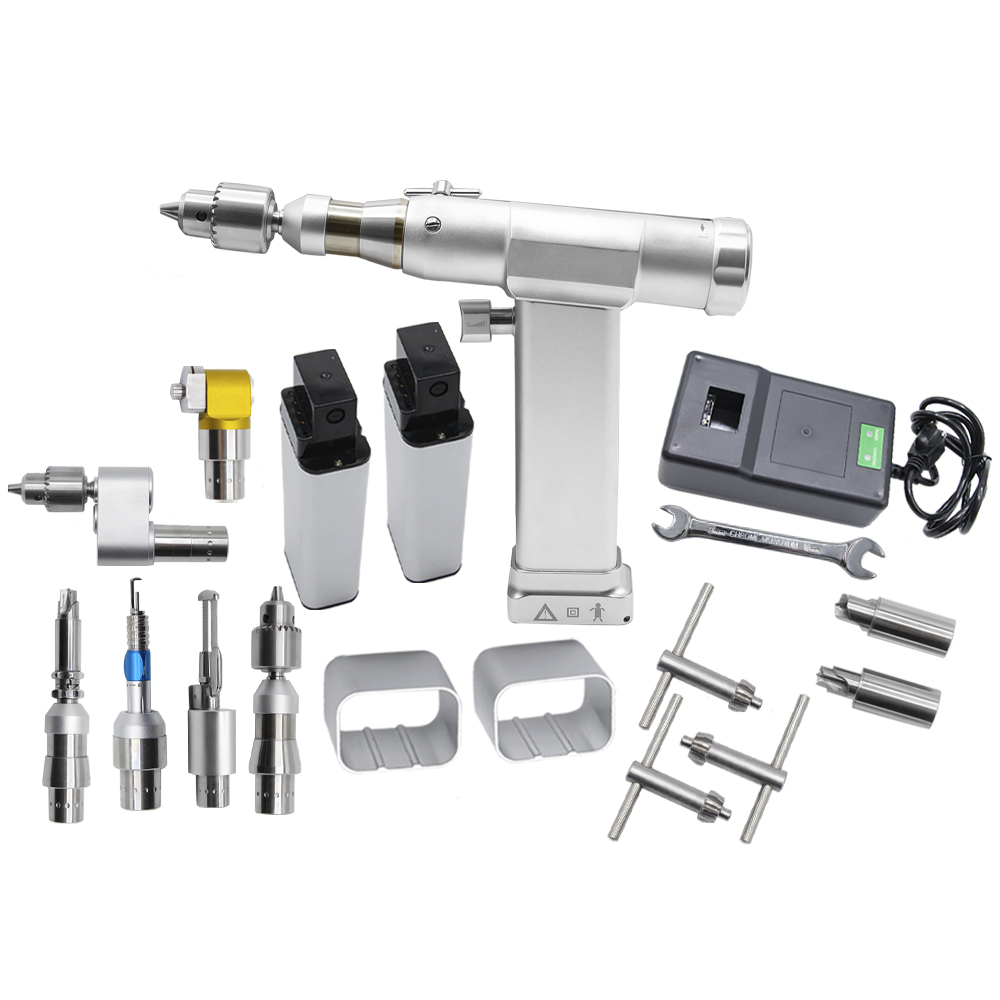

4. Small and light hollow main motor can be connected with 4 different components for quick loading and unloading and various functions.

5. The bone drill assembly can be used as a hollow drill and bone drill, for trauma drilling, intramedullary nailing, and also for connecting pendulum saw and kirschner wire.

6. Kirschner wire is used for wound perforation and intramedullary nailing, but kirschner wire is convenient to operate and does not need to be locked by key.

7. It is suitable for hand-foot orthopedics, pediatric orthopedics or small animal orthopedics

PS: drilling is for bone drilling, sawing is for bone sawing, generally not for big joints, small joints, or small fingers/toes.
