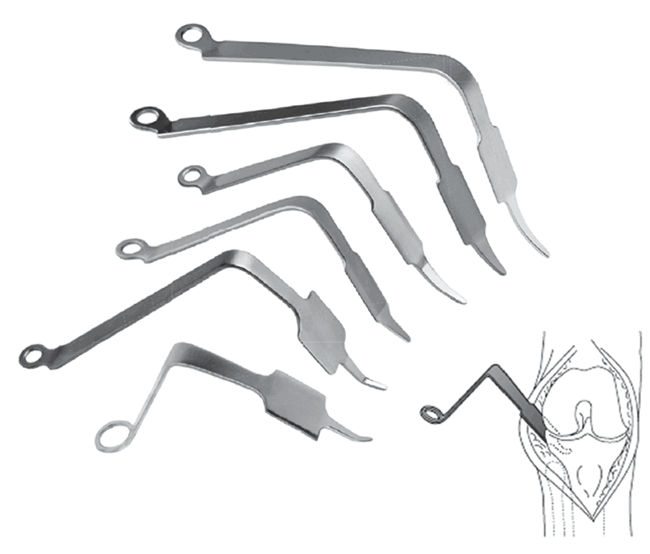

Acetabulum Hook Retractor
Acetabulum Hook Retractor — a orthopedic instrument from OrthoLimited, supplied to ISO 13485 standards for hospitals and distributors worldwide.
- SKU
- Q8-19
- MPN
- Q8-19
- Brand
- OrthoLimited
- Manufactured by
- OrthoLimited Inc.
- Warehouse
- EU
- Availability
- In stock
- ✓ CE marked
- ✓ ISO 13485
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
| Product | REF | Specification |
| Acetabulum Hook (1) | Q8-19-01 | 16mm |
| Q8-19-02 | 25mm | |
| Q8-19-03 | 30mm | |
| Q8-19-04 | 42mm | |
| Acetabulum Hook (2) | Q8-20 | 235mm*18mm*22mm |
| Acetabulum Hook (3) | Q8-21 | 230mm*18mm |
| Acetabulum Hook (4) | Q8-22 | 360mm*18mm*125mm |
| Acetabulum Hook (5) | Q8-23 | 290mm*18mm*25mm |
| Acetabulum Hook (6) | Q8-24 | 380mm*27mm*35mm |
| Acetabulum Hook (7) | Q8-25 | 230mm*18mm |
| Acetabulum Hook (8) | Q8-26 | 270mm*18mm |
| Acetabulum Hook (9) | Q8-27-01 | 460mm*18mm*125mm |
| Q8-27-02 | 420mm*18mm*75mm | |
| Q8-27-03 | 290mm*18mm*90mm | |
| Acetabulum Hook (10) | Q8-28 | 340mm*34mm |
| Acetabulum Hook (11) | Q8-29 | 350mm*40mm*159mm |
| Acetabulum Hook (12) | Q8-30 | 320mm*38mm |
| Acetabulum Hook (13) | Q8-31 | 255mm*35mm*42mm |
| Acetabulum Hook (14) | Q8-32 | 290mm*22mm*40mm |
| Acetabulum Hook (15) | Q8-33 | 290mm*21mm*48mm |
| Acetabulum Hook (16) | Q8-34 | 280mm*40mm |
| Acetabulum Hook (17) | Q8-35 | 320mm*30mm*75mm |
| Tuberosity Pry (18) | Q8-36 | 360mm*32mm |
| Acetabulum Hook (19) | Q8-37 | 262mm*30mm |
| Acetabulum Hook (20) | Q8-38 | 345mm*25mm |
| Acetabulum Hook (21) | Q8-39 | 298mm*108mm*35mm |
| Acetabulum Hook (22) | Q8-40 | 485mm*55mm*103mm |
| Acetabulum Hook (23) | Q8-41 | 415mm*33mm*133mm |
| Acetabulum Hook (24) | Q8-42 | 475mm*31mm*123mm |
| Acetabulum Hook (25) | Q8-43 | 270mm*50mm*90mm |
| Acetabulum Hook (26) | Q8-44 | 220mm*8mm*16mm |
| Acetabulum Hook (27) | Q8-45 | 220mm*5mm*140° |
| Acetabulum Hook (28) | Q8-46 | 275mm*12mm*32mm |
| Acetabulum Hook (29) | Q8-47 | 320mm*33mm |
| Acetabulum Hook (30) | Q8-48 | 290mm*21mm |
| Acetabulum Hook (31) | Q8-49 | 270mm*20mm |
| Acetabulum Hook (32) | Q8-50 | 260mm*12mm*32mm |
| Acetabulum Hook (33) | Q8-51 | 205mm*2.5mm*85mm |
| Acetabulum Hook (34) | Q8-52 | 343mm*27mm*27mm |
| Acetabulum Hook (35) | Q8-53-01 | 255mm*22mm*16mm |
| Q8-53-02 | 290mm*33mm*42mm | |
| Acetabulum Hook (36) | Q8-54-01 | 275mm*25mm |
| Q8-54-02 | 275mm*32mm | |
| Acetabulum Hook (37) | Q8-55 | 280mm*28mm |
| Acetabulum Hook (38) | Q8-56-01 | 280mm*20mm |
| Q8-56-02 | 280mm*28mm | |
| Acetabulum Hook (39) | Q8-57 | 270mm*15mm*90mm*(90°/110°） |
| Acetabulum Hook (40) | Q8-58 | 280mm*12mm |
| Acetabulum Hook (41) | Q8-59 | 300mm*24mm*32mm |
| Acetabulum Hook (42) | Q8-60 | 270mm*30mm |
| Acetabulum Hook (43) | Q8-61 | 280mm*22mm |
| Acetabulum Hook (44) | Q8-62 | 350mm*22mm*131mm |
| Acetabulum Hook (45) | Q8-63 | 290mm*19mm*48mm |
| Acetabulum Hook (46) | Q8-64-01 | 308mm*12mm*80mm |
| Q8-64-02 | 308mm*18mm*80mm | |
| Q8-64-03 | 308mm*22mm*80mm | |
| Acetabulum Hook (47) | Q8-65 | 350mm*20mm*159mm |
| Acetabulum Hook (48) | Q8-66 | 262mm*10mm |
| Acetabulum Hook (49) | Q8-67 | 320mm*19mm |
| Acetabulum Hook (50) | Q8-68 | 260mm |
| Acetabulum Hook (51) | Q8-69 | 233mm*131mm*20mm |
| Acetabulum Hook (52) | Q8-70-01 | 245mm*23mm |
| Q8-70-02 | 245mm*28mm | |
| Acetabulum Hook (53) | Q8-71 | 320mm*15mm |
| Acetabulum Hook (54) | Q8-72-01 | 205mm*20mm*60mm |
| Acetabulum Hook (55) | Q8-73 | 280mm*22mm*100mm |
| Acetabulum Hook (56) | Q8-74 | 250mm*16mm*70mm |
| Acetabulum Hook (57) | Q8-75 | 255mm*16mm*65mm |
| Acetabulum Hook (58) | Q8-76 | 280mm*15mm*75mm |
| Acetabulum Hook (59) | Q8-77 | 245mm*25mm*30mm |
| Acetabulum Hook (60) | Q8-78 | 365mm*28mm*80mm |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Model
- Q8-19
- Material
- medical stainless steel
- Certification
- CE, ISO 9001, ISO 13485
